5747375-8

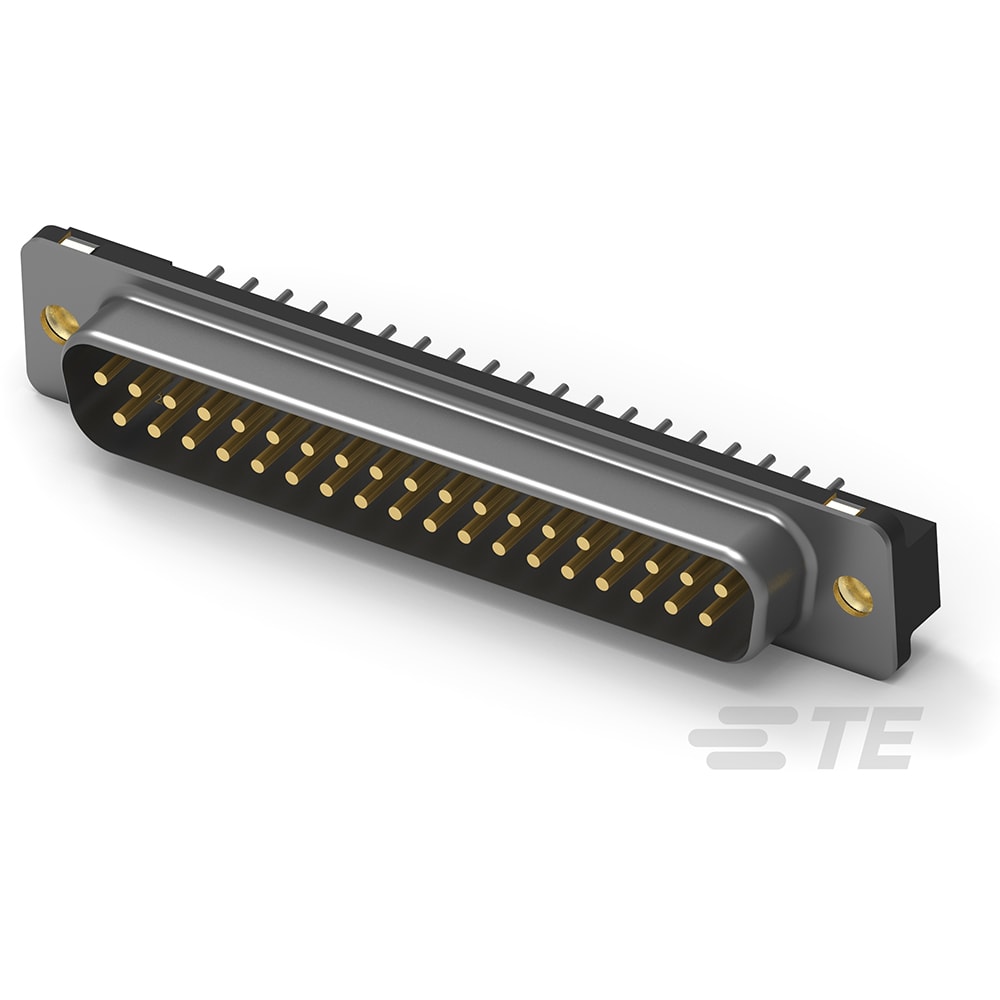

Connectors, D-Sub, Standard, PLUG FRNT MTL SHL 37 threaded inserts | TE Connectivity 5747375-8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5747375-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5747375-8
| Part Name | 5747375-8 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Shell Plating Material | Tin |
| Centerline (Pitch) | .109 |
| Grounded | Yes |
| Shell Material | Carbon Steel |
| Circuit Application | Signal |
| Plastic | No |
| Housing Material | Polyester |
| Connector & Contact Terminates To | Printed Circuit Board |
| Shell Size | 4 |
| Connector Style | Plug |
| Mating Connector Lock Type | Threaded Insert, 4-40 UNC |
| Number of Positions | 37 |
| PCB Mount Retention Type | Mounting Hole |
| Profile | Standard |
| Threaded Insert Material | Brass |
| PCB Thickness (Recommended) | 1.57 – 2.36 |
| Panel Mount Feature | Without |
| Operating Temperature Range | -55 – 105 |
| TE Internal Number | 5747375-8 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 2 |
| Grounding Straps | Without |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Contact Shape | Round |
| PCB Mount Retention | With |
| Mounting Hole Diameter | 3.05 |
| Packaging Method | Tube |
| Packaging Quantity | 7 |
| Grounding Indents | With |
| Sealable | No |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| Insert Material | Brass |
| RoHS | True |
| PCB Mounting Style | Through Hole |
| 端子の下地めっきの材料 | Nickel |
| Termination Post Length | .125 |
| Shell Type | Front Metal Shell |
| Post Size | .026 |
| Grounding Clips | Without |
| Row-to-Row Spacing | .112 in |
| Contact Current Rating (Max) (A) | 6 |
| Contact Mating Area Plating Thickness | 30 |
| Product Type | Connector |
| UL Flammability Rating | UL 94V-0 |
| PCB Contact Termination Area Plating Material | Tin |
| Preloaded | Yes |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
