5747844-6
SnapVerified
Connector D-Subminiature Receptacle 9 Position 2.74mm Solder Right Angle Through Hole 9 Terminal 1 Port
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5747844-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

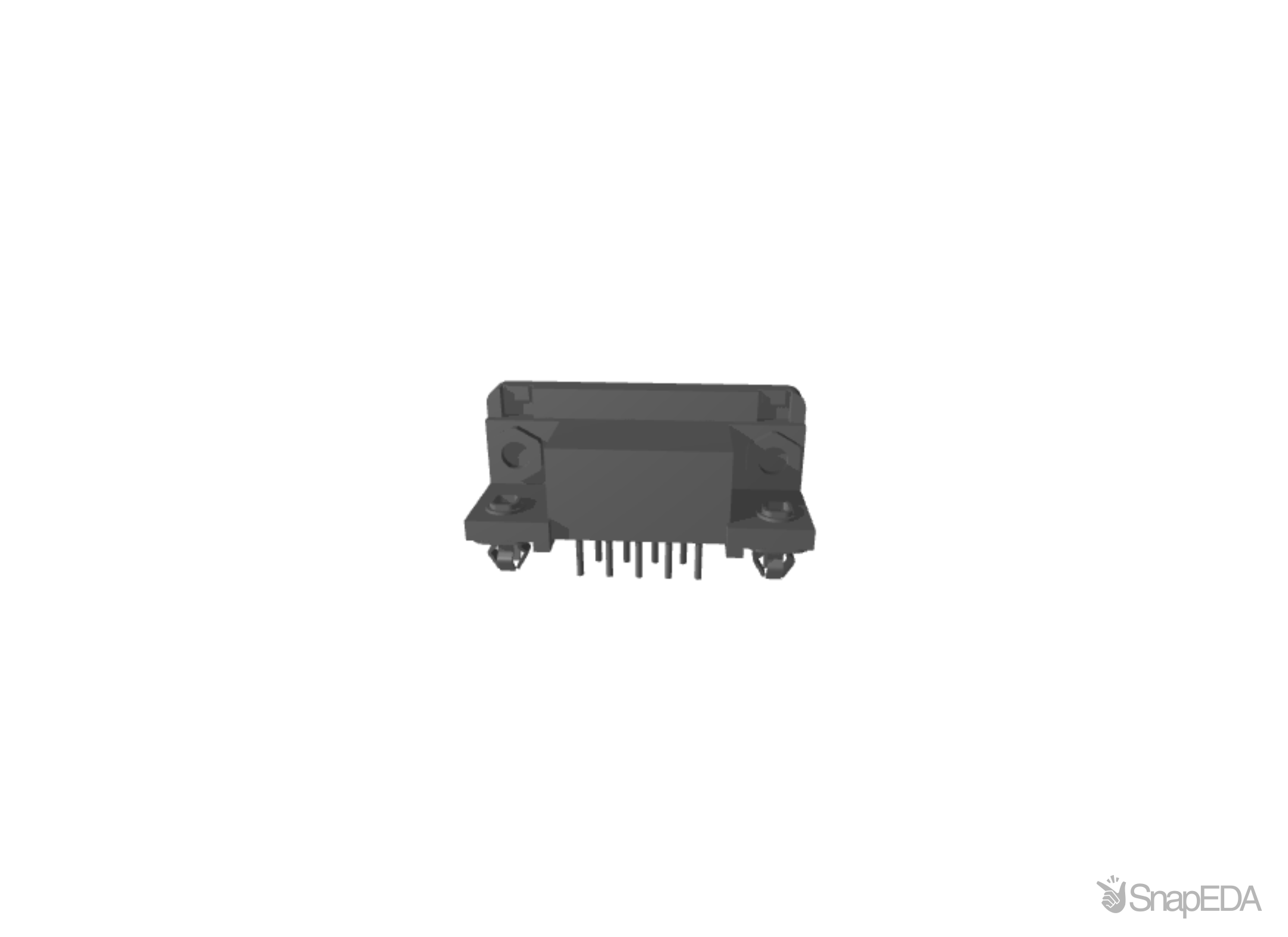

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5747844-6
| Part Name | 5747844-6 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Tin |
| Centerline (Pitch) | .108 |
| Grounded | No |
| Shell Material | Steel |
| Circuit Application | Signal |
| Plastic | No |
| Housing Material | Thermoplastic |
| Row-to-Row Spacing | 2.84 mm |
| Connector & Contact Terminates To | Printed Circuit Board |
| Female Screwlock Material | Zinc |
| Shell Size | 1 |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Female Screwlocks, Fixed |
| Preloaded | Yes |
| PCB Mount Retention Type | Boardlock |
| Profile | Standard |
| Connector System | Board-to-Board |
| PCB Thickness (Recommended) | 1.58 |
| Eyelet Plating Material | Tin |
| TE Internal Number | 5747844-6 |
| PCB Mount Orientation | Right Angle |
| PCB Mount Alignment | With |
| Mating Retention | With |
| Number of Rows | 2 |
| Grounding Straps | With |
| Housing Color | Black |
| Footprint | 8.08 |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Contact Shape | Round |
| PCB Mount Retention | With |
| Female Screwlock Plating Material | Clear Chromate |
| Operating Temperature Range | -67 – 221 |
| Mounting Hole Diameter | .125 |
| Packaging Method | Tray |
| Packaging Quantity | 130 |
| Grounding Indents | Without |
| Number of Positions | 9 |
| Contact Mating Area Plating Material | Gold |
| Insert Material | Zinc |
| RoHS | True |
| PCB Mounting Style | Through Hole |
| Boardlock Material | Copper Alloy |
| Sealable | No |
| Termination Post Length | .125 |
| Shell Type | Front Metal Shell |
| Post Size | .026 |
| Grounding Clips | Without |
| Eyelet Material | Brass |
| Boardlock Plating Material | Tin |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 6 |
| Contact Mating Area Plating Thickness | 30 |
| Product Type | Connector |
| UL Flammability Rating | UL 94V-0 |
| PCB Contact Termination Area Plating Material | Tin |
| Mating Connector Lock | With |
| Mating Retention Type | Screw |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | Amplimite HD-20 |
| Dimensions | 30.81 x 12.54 x 18.79 (mm) |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Length | 30.81 (mm) |
| Housing Material | Thermoplastic |
| Width | 12.54 (mm) |
| Depth | 18.79 (mm) |
| Contact Plating | Gold over Nickel |
| Pitch | 2.74 (mm) |
| Mounting Hardware | 4-40 UNC Female Screwlocks, Boardlocks |
| Number Of Contacts | 9 |
| Contact Material | Phosphor Bronze |
