5767061-2
MICT,RECPT,076,ASSY,093,PDNI
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5767061-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

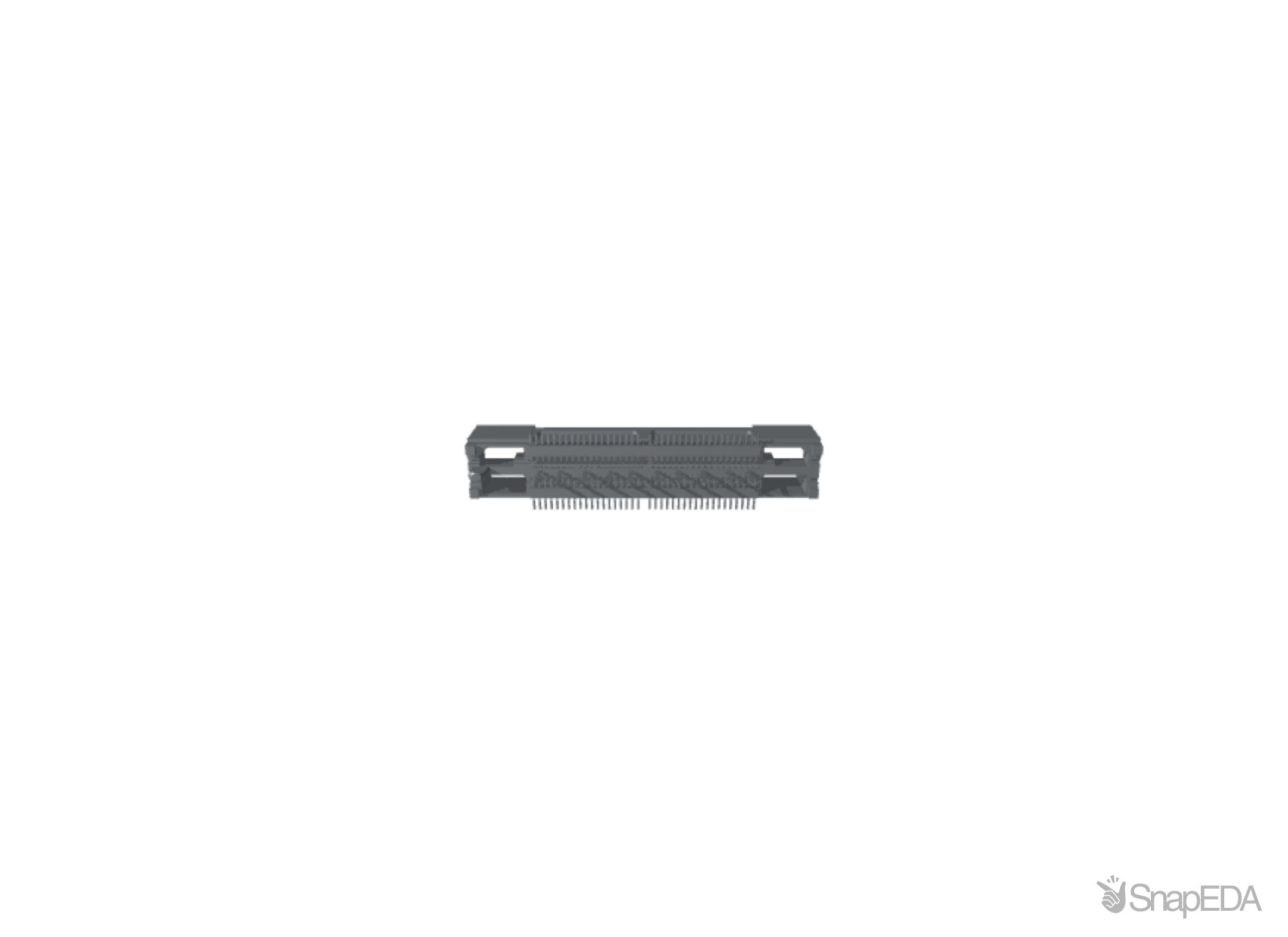

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5767061-2
| Part Name | 5767061-2 |
| Manufacturer | TE Connectivity |
| Number of Power Positions | 2 |
| Contact Current Rating (Max) (A) | 11.5 |
| Centerline (Pitch) | .025 |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94V-0 |
| Mating Retention | With |
| Ground Component Type | Ground Bus |
| Insulation Resistance | 2 |
| Operating Voltage (V) | 2 |
| PCB Mount Alignment Type | Locating Posts |
| UL Rating | Listed |
| Number of Positions | 76 |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .8 |
| CSA File Number | 1195944 |
| Mating Post Length | .064 |
| TE Internal Number | 5767061-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Termination Method to Printed Circuit Board | Surface Mount |
| Connector Height | 5.99 |
| Number of Rows | 2 |
| Housing Color | Black |
| Connector Width | 5.2832 |
| Data Rate | 10 |
| Number of Signal Positions | 76 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 149.9997 – 249.9995 |
| Dielectric Withstanding Voltage (Max) (V) | 500 |
| Number of Columns | 38 |
| Connector Length | 38.1 |
| UL File Number | E28476 |
| Header Type | Header Only |
| Operating Temperature Range | -67 – 257 |
| Contact Layout | Inline |
| CSA Certified | Yes |
| Mating Entry Location | Top |
| Contact Mating Area Plating Material Finish | Matte |
| Packaging Method | Box & Tube |
| PCB マウント アラインメント タイプ | Locating Posts |
| Packaging Quantity | 14 |
| Contact Configuration | Dual Beam |
| Agency/Standard | CSA |
| Connector & Contact Terminates To | Printed Circuit Board |
| Differential Signaling | Yes |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | Matte |
| Contact Base Material | Copper Alloy |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Alignment | With |
| Stack Height | 9 |
| Contact Mating Area Plating Material Thickness | 29.9212 |
| Row-to-Row Spacing | 5.79 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Contact Type | Socket |
| Stackable | Yes |
| Board-to-Board Configuration | Mezzanine |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
