5787366-1
Conn Battery HDR 5 POS 5mm Solder RA Thru-Hole 5 Terminal 1 Port Tray
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5787366-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

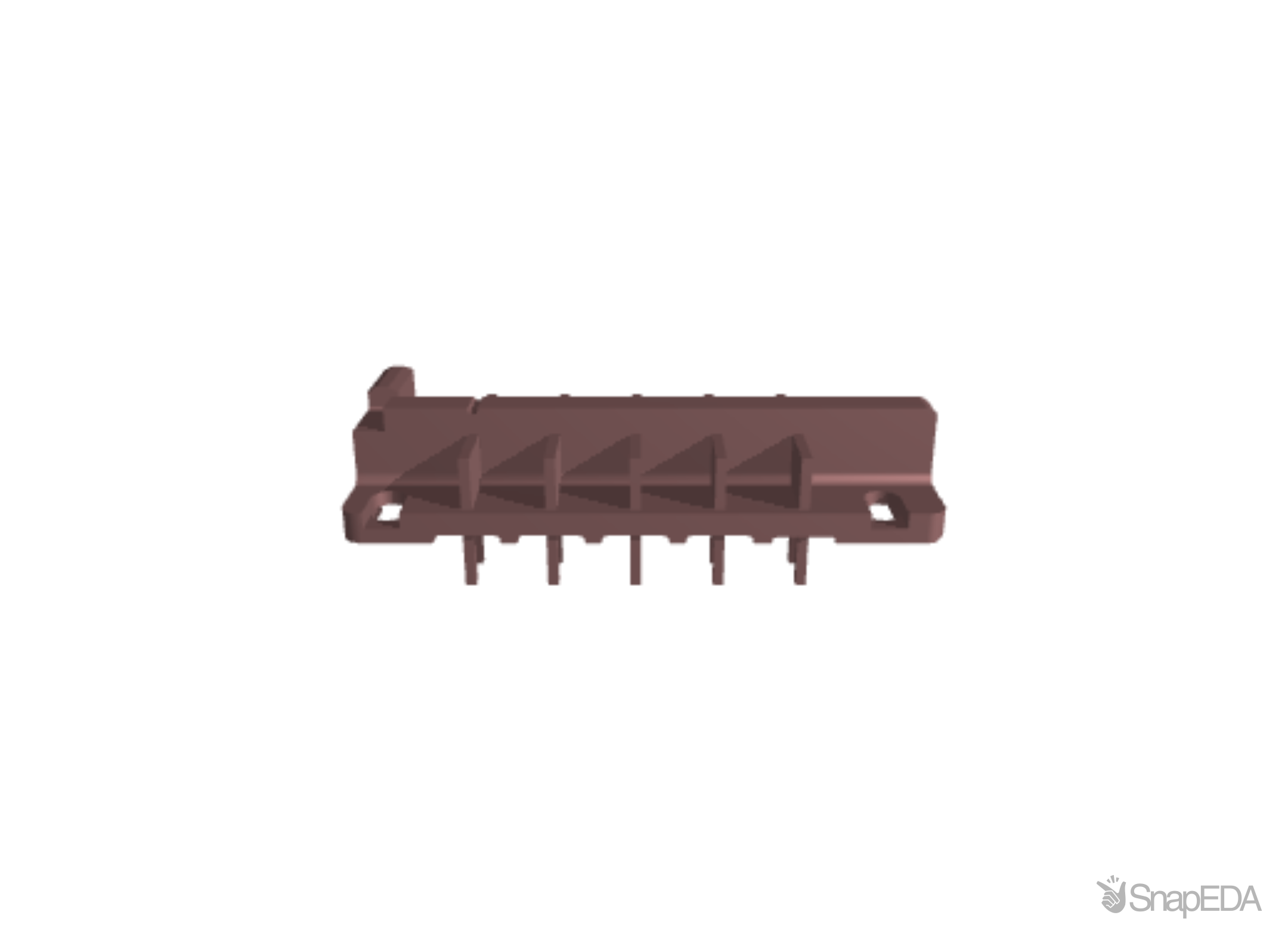

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5787366-1
| Part Name | 5787366-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 5 |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 12 |
| Connector Style | Plug |
| Number of Positions | 5 |
| PCB Mount Retention Type | Solder |
| PCB Mount Retention | With |
| TE Internal Number | 5787366-1 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Contact Underplating Material | Nickel |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -22 – 158 |
| Packaging Method | Tray |
| Packaging Quantity | 88 |
| RoHS | True |
| 端子の下地めっきの材料 | Nickel |
| Contact Mating Area Plating Material Thickness | 100 |
| Contact Current Rating (Max) (A) | 7 |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5787366-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
3,520 x $3.60
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
1,274
|
|
Visit Site | |
| Heilind Americas |
|
3,520 x $3.12
|
Visit Site | |
| Interstate Connecting Components |
|
3,520 x $3.12
|
Visit Site | |
| Mouser |
|
3,520 x $3.41
|
Visit Site | |
| Newark |
383
|
1 x $2.09
|
Visit Site | |
| Onlinecomponents |
283
|
|
Visit Site | |
| Powell Electronics |
934
|
|
Visit Site | |
| Sager |
|
3,520 x $3.90
|
Visit Site | |
| Verical |
383
|
|
Visit Site | |
| element14 Singapore |
408
|
|
Visit Site |
No issues have been reported for the 5787366-1
If you experienced any issues with this part, please report it.
