5787617-1
SnapVerified
Conn, Data, USB, Recept, 2.0, 4 Pos, 2 Port, Rt Angle, Stack, A Ser, Gold/Nickel | TE Connectivity 5787617-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5787617-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

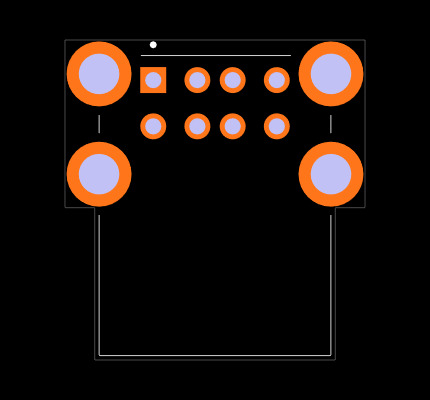

Footprint
No web preview
This Footprint is Available for

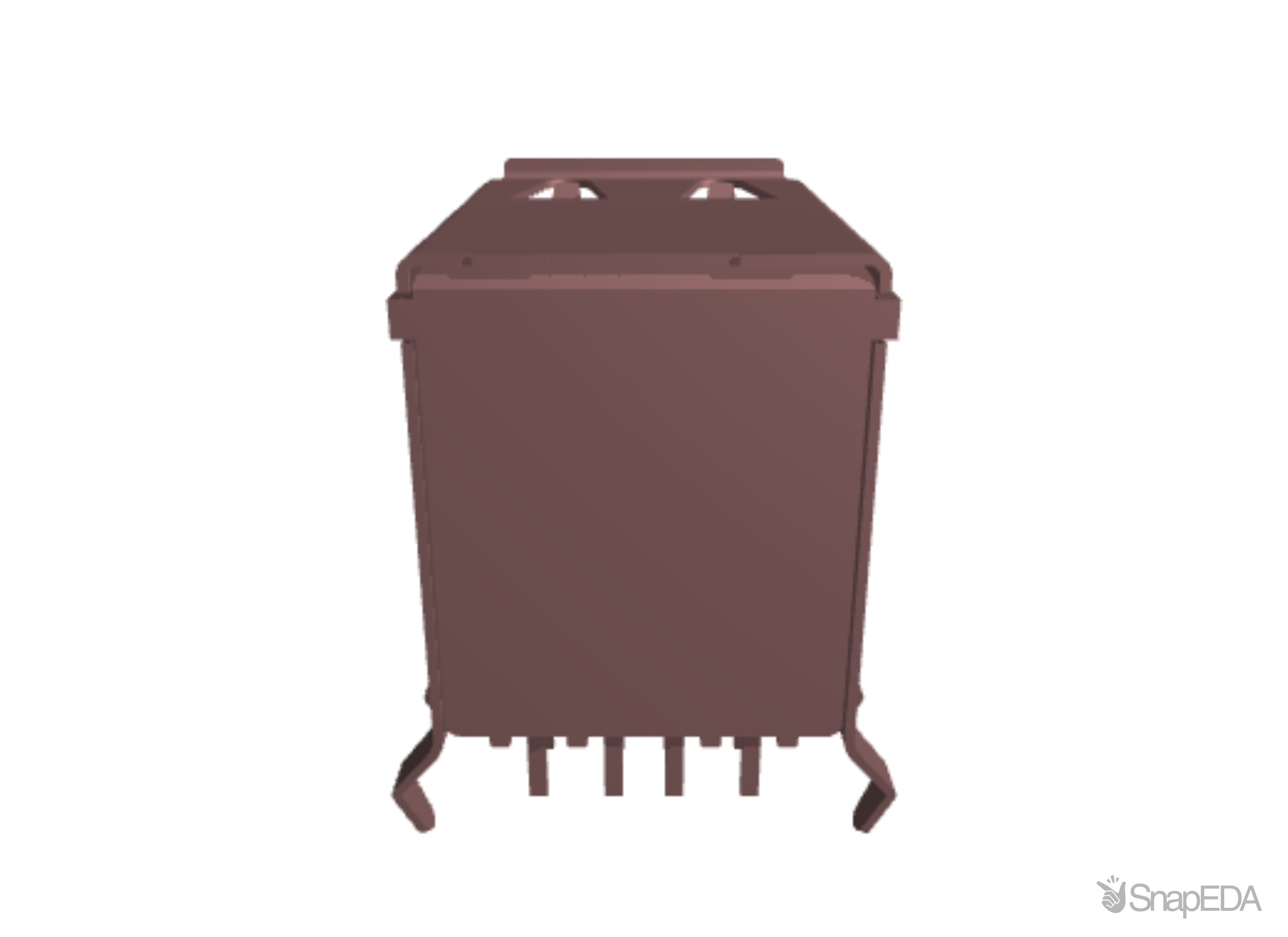

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5787617-1
| Part Name | 5787617-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Shell Plating Material | Tin |
| Centerline (Pitch) | 2 |
| USB Version | 2.0 |
| Circuit Application | Signal |
| USB Type | A |
| Housing Material | Thermoplastic |
| Contact Termination Type | Through Hole |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Kinked Legs |
| Locking Feature | With |
| PCB Thickness (Recommended) | 1.57 |
| Mounting Location | Top |
| TE Internal Number | 5787617-1 |
| Number of Positions | 8 |
| Connector System | Cable-to-Board |
| Housing Color | Black |
| Termination Method | Solder |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Industry Standard | USB 2.0 |
| Operating Temperature Range | -67 – 185 |
| Shell Plating Finish | Bright |
| Packaging Method | Box & Tray |
| Locating Posts | Without |
| Tail Length | 2.84 |
| Packaging Quantity | 88 |
| Number of Ports | 2 |
| Contact Mating Area Plating Material | Gold or Gold Flash over Palladium Nickel |
| RoHS | True |
| LED | Without |
| Orientation | Right Angle |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | .76 |
| Size | Standard |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.0 (A) |
| Usb Version | 2.0 |
| Mounting Type | Through Hole |
| Gender | Female |
| Usb Type | B |
| Number Of Ports | 2 |
| Minimum Operating Temperature | -55.0 (°C) |
| Termination Method | Solder |
| Maximum Operating Temperature | +85 (°C) |
| Body Orientation | Right Angle |
| Contact Material | Copper Alloy |
Inventory for the 5787617-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9,215
|
|
Visit Site | |
|
★ Featured
|
345
|
|
Visit Site | |
|
★ Featured
|
22,000
|
315 x $0.97
|
Visit Site | |
| Arrow Europe |
3,350
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Compona AG |
|
|
Visit Site | |
| CoreStaff |
396
|
|
Visit Site | |
| Farnell UK |
591
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
1
|
|
Visit Site | |
| Onlinecomponents |
567
|
|
Visit Site | |
| Powell Electronics |
374
|
|
Visit Site | |
| RS UK |
250
|
|
Visit Site | |
| Sager |
|
528 x $3.59
|
Visit Site | |
| TE Connectivity |
11,403
|
|
Visit Site | |
| TTI Europe |
11,000
|
|
Visit Site | |
| Verical |
528
|
|
Visit Site | |
| element14 Singapore |
591
|
|
Visit Site |
No issues have been reported for the 5787617-1
