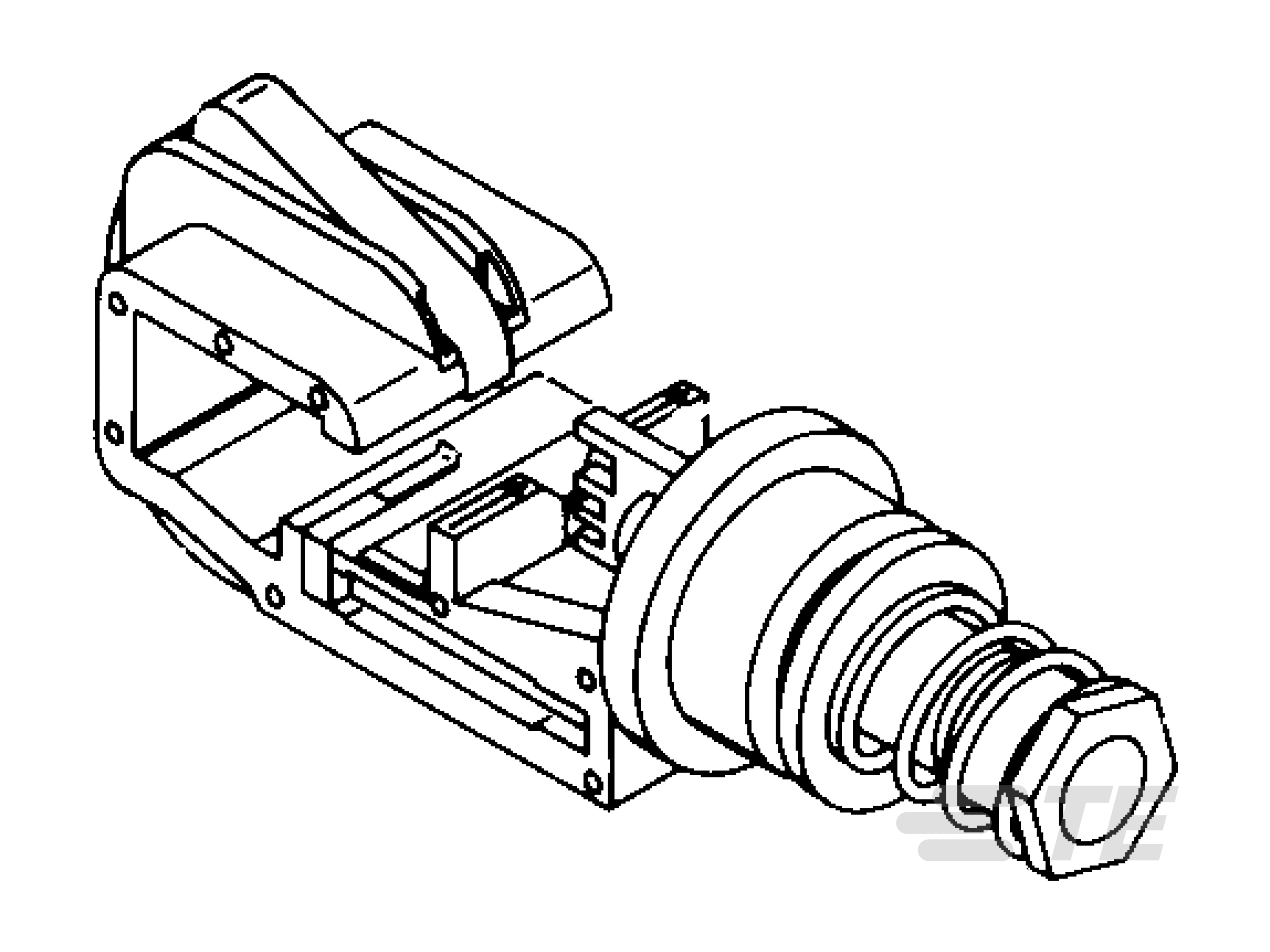

58082-1
MTA Crimp Tool Terminating Head; Crimp Application:Contacts; Crimp Size:26AWG to 18AWG; For Use With:MTA Posted Connectors
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 58082-1 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 58082-1
| Part Name | 58082-1 |
| Manufacturer | TE Connectivity / AMP |
| Tool Grade | Commercial Crimp Tooling |
| Tool Type | IDC Tooling |
| Certification | Cannot be Certified |
| Power Type | Manual |
| TE Internal Number | 58082-1 |
| Die Sets Type | Fixed In Tool |
| Crimp Form-Wire Barrel Type | Insulation Displacement |
| Specification Type | TE Product Specification (114-) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 58082-1 by TE Connectivity / AMP from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9
|
|
Visit Site | |
|
★ Featured
|
6
|
1 x $469.00
|
Visit Site | |
| Onlinecomponents |
9
|
|
Visit Site | |
| Verical |
8
|
|
Visit Site |
No issues have been reported for the 58082-1
