58529-1

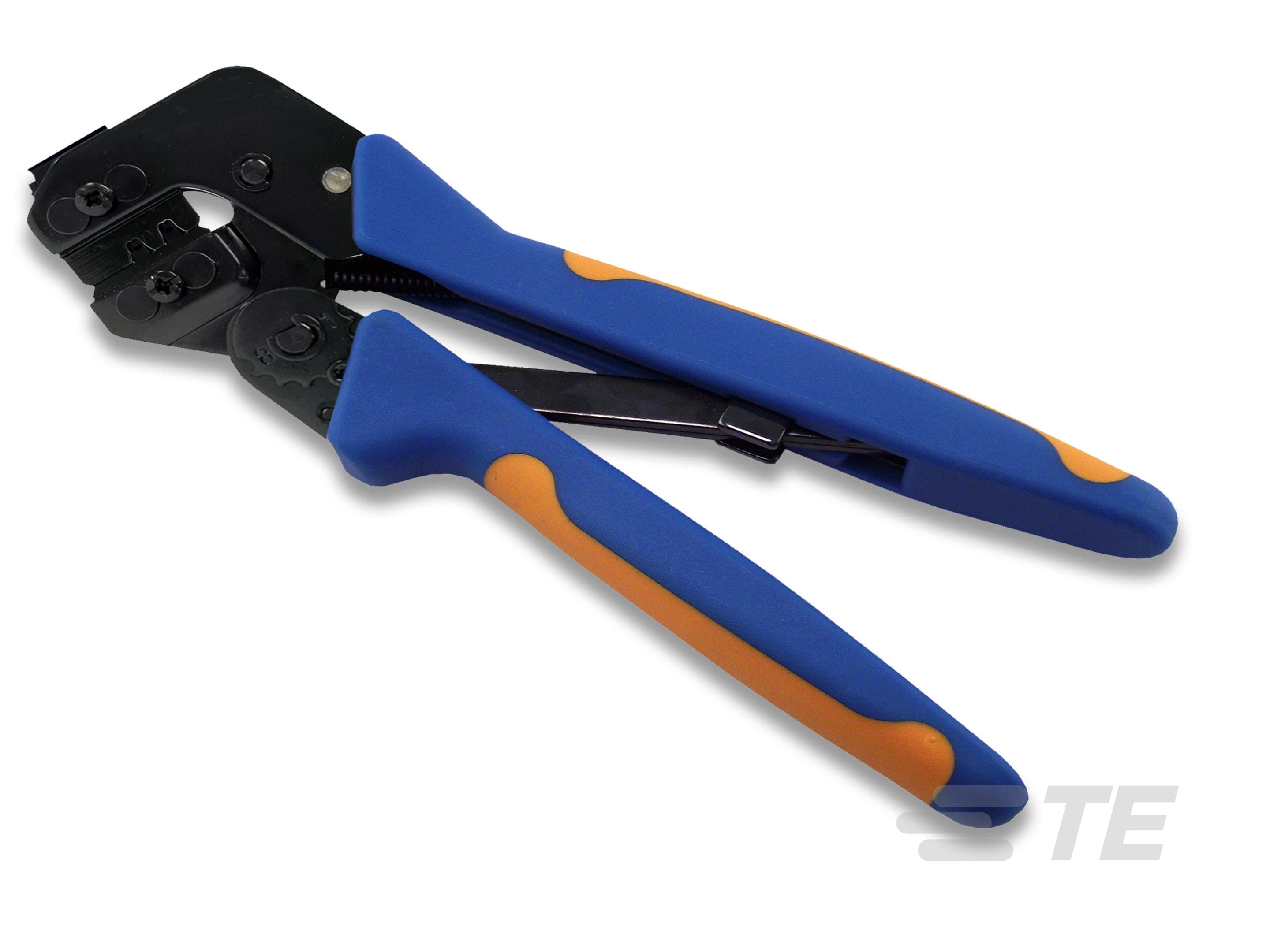

Pro-Crimper III Crimp Tool,Ampseal Contacts,20-16 AWG,Strip Length 0.2" (5.08mm) | TE Connectivity 58529-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 58529-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 58529-1
| Part Name | 58529-1 |
| Manufacturer | TE Connectivity |
| Category | Tools & Hardware |
| Tool Grade | Commercial Crimp Tooling |
| Tool Type | PRO-CRIMPER Hand Tool |
| Ratchet Configuration | Operator Releasable & Adjustable |
| Certification | Upon Request for Fee |
| Power Type | Battery |
| TE Internal Number | 58529-1 |
| Die Sets Type | Removable/Interchangeable |
| Crimp Form-Wire Barrel Type | Open Barrel - F Crimp |
| RoHS | True |
| Specification Type | TE Product Specification (114-) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | PRO-CRIMPER III |
| Ratcheting | Yes |
| Wire Size Mm | 0.5 → 1.25 (mm²) |
| Wire Size Awg | 20 → 16 (AWG) |
| Distrelec Product Id | 30164762 |
| For Use With | Ampseal Connector Contacts |
| Operation | Hand |
| Product Type | Crimp Tool |
