593D226X9025D2TE3

Name: 593D226X9025D2TE3
Brand: Vishay

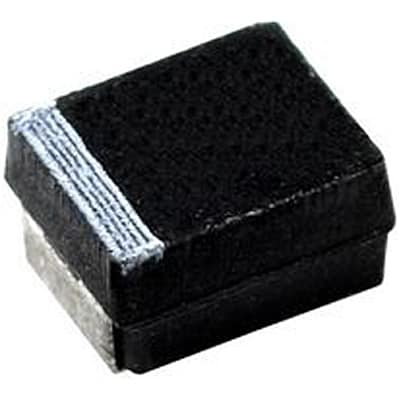

Capacitor;Tantalum;Cap 22 uF;Tol 10%;Vol-Rtg 25 VDC;SMT;0.2 Ohms;7343-31 | Sprague / Vishay 593D226X9025D2TE3

Availability: Out of Stock

Package Type: 2917

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 593D226X9025D2TE3 by Vishay and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

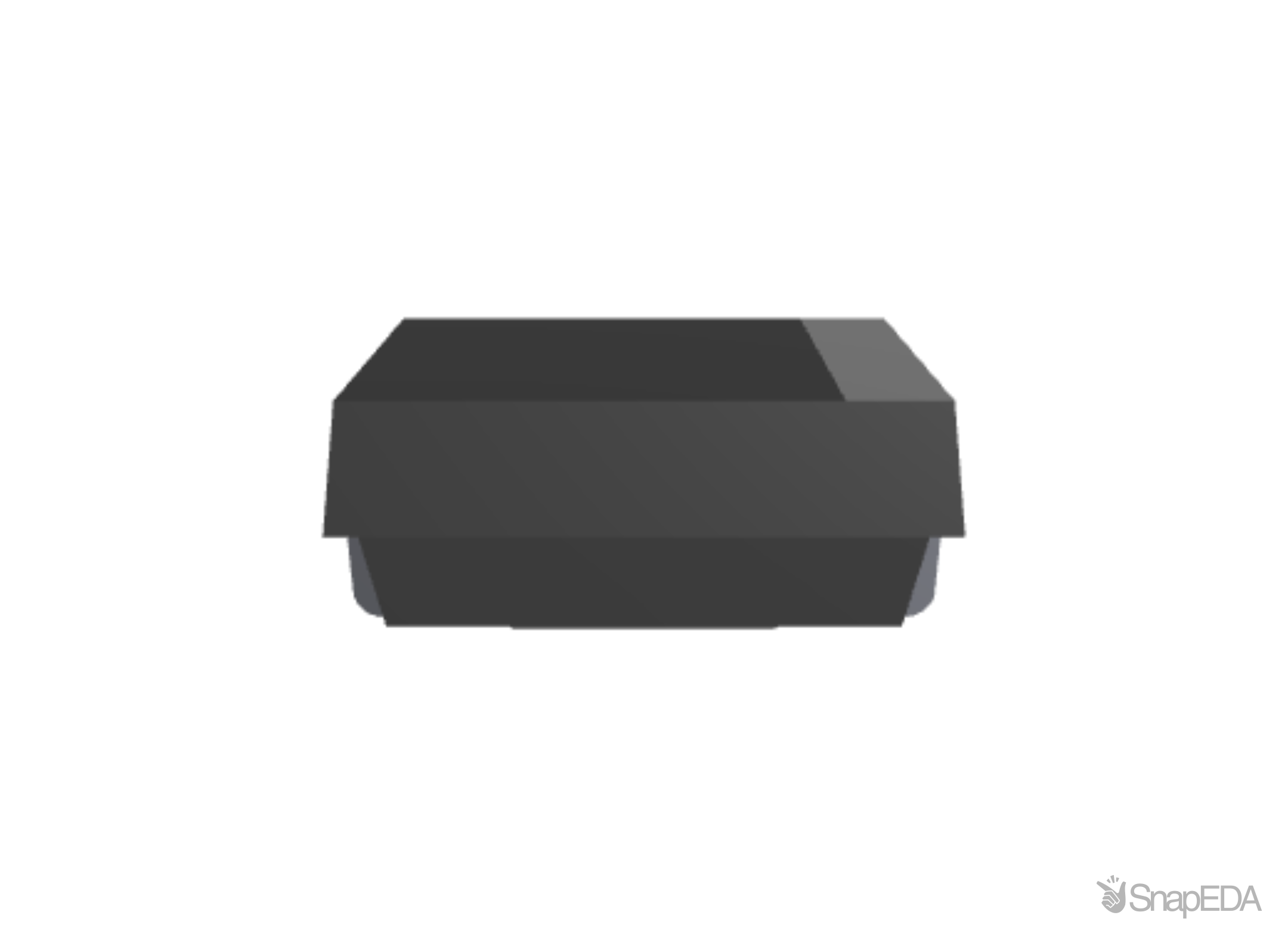

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 593D226X9025D2TE3

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 593D226X9025D2TE3

Part Name	593D226X9025D2TE3
Manufacturer	Vishay Sprague
Category	Electronic Components
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Tolerance Plus	+10 (%)
Minimum Operating Temperature	-55 (°C)
Tolerance Minus	-10 (%)
Package Case	7343-31
Series	593D
Length	7.3 (mm)
Equivalent Series Resistance	200 (mΩ)
Height	2.8 (mm)
Capacitance	22 (µF)
Depth	4.3 (mm)
Dimensions	7.3 x 4.3 x 2.8 (mm)
Technology	MnO2
Dissipation Factor	6 (%)
Leakage Current (A)	5.5 μA
Electrolyte Type	Solid
Mounting Type	Surface Mount
Maximum Operating Temperature	+125 (°C)
Tolerance	±10 (%)
Terminal Type	Surface Mount
Voltage (V)	25 (V dc)

We could not find inventory or pricing across major distributors for the 593D226X9025D2TE3 by Vishay.
