Work Email

First Name

Last Name

Company

Country

State

City

I agree to share this information with Vishay Sprague

* Please fill required fields

Why we ask for this information

The supplier asked us to collect this information for this resource. At SnapEDA, Inc. ("SnapMagic"), we care about our users and only share information with your permission.

⨉

We hope you enjoy your free samples!

Your free samples will be sent to

Design electronics in a snap

Download free symbols, footprints, and 3D models for millions of electronic components. Compatible with all major PCB tools.

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then Request Now

593D227X9010E2TE3

Name: 593D227X9010E2TE3
Brand: Vishay

Capacitor;Tantalum;220uF;Tol 10%;SMT;Vol-Rtg 10V;Size 7343-43 | Sprague / Vishay 593D227X9010E2TE3

Availability: Out of Stock

Package Type: 2917

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 593D227X9010E2TE3 by Vishay and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

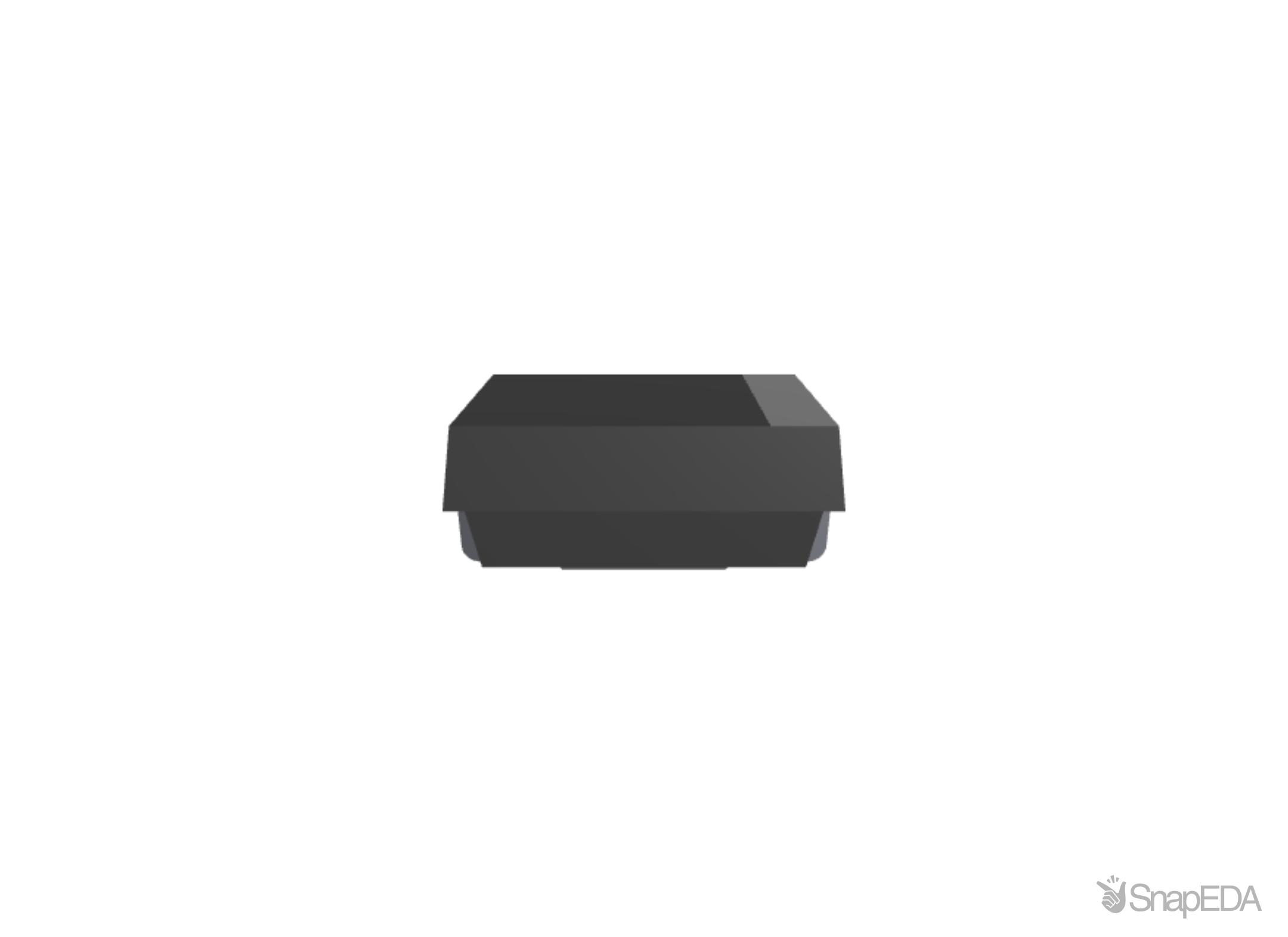

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 593D227X9010E2TE3

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 593D227X9010E2TE3

Part Name	593D227X9010E2TE3
Manufacturer	Vishay Sprague
Category	Electronic Components
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Dissipation Factor	8 (%)
Maximum Operating Temperature	+125 (°C)
Dimensions	7.3 x 4.3 x 4 (mm)
Mounting Type	Surface Mount
Tolerance	±10 (%)
Series	593D
Tolerance (Plus)	+10 (%)
Minimum Operating Temperature	-55 (°C)
Depth	4.3 (mm)
Equivalent Series Resistance	100 (mΩ)
Height	4 (mm)
Capacitance	220 (µF)
Length	7.3 (mm)
Voltage (V)	10 (V dc)
Leakage Current (A)	22 μA
Electrolyte Type	Solid
Tolerance (Minus)	-10 (%)
Technology	MnO2
Terminal Type	Surface Mount
Package/Case	7343-43

We could not find inventory or pricing across major distributors for the 593D227X9010E2TE3 by Vishay.
