598-8030-107F

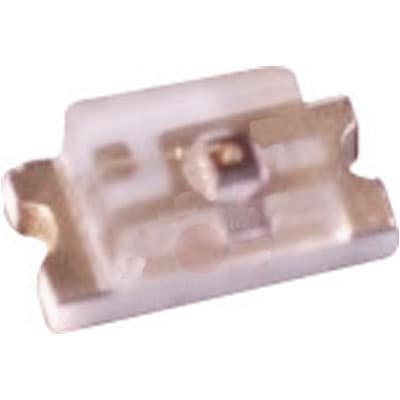

LED; 0603 SMT LED,ORANGE,ALINGAP,WATER CLEAR LENS,140 DEG VIEWING ANGLE | Dialight 598-8030-107F
Availability: Out of Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 598-8030-107F by Dialight and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

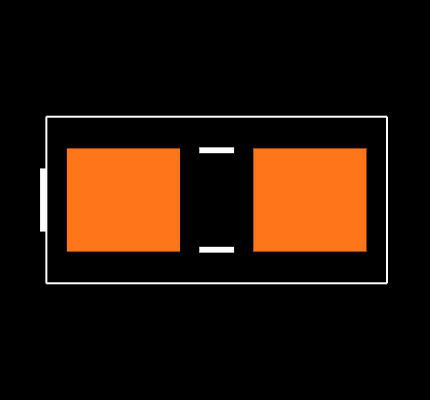

Footprint
No web preview
This Footprint is Available for

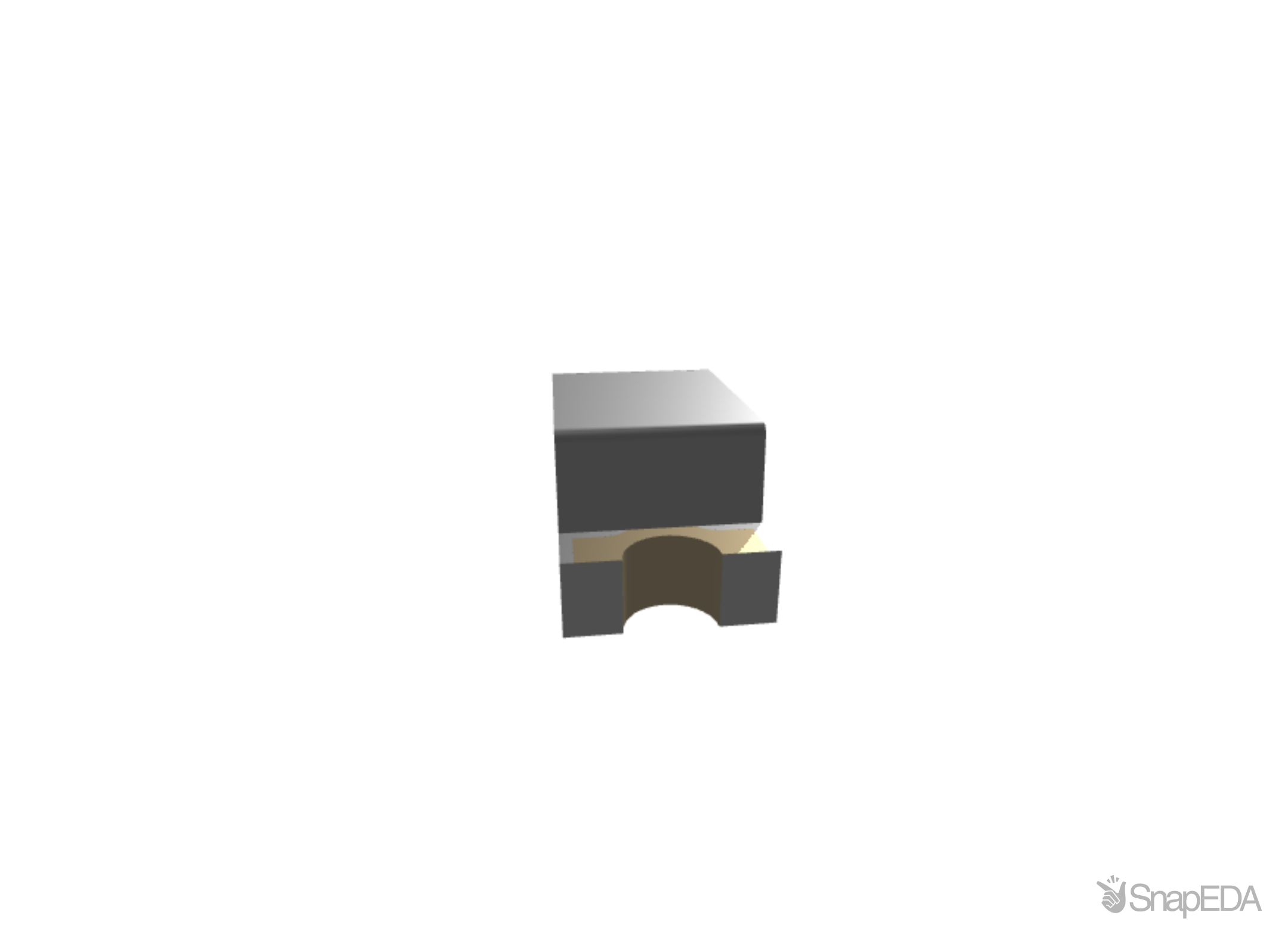

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 598-8030-107F
| Part Name | 598-8030-107F |
| Manufacturer | Dialight |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | Clear |
| Dominant Wavelength | 605 nm |
| Dimensions | 1.6 x 0.8 x 0.7 (mm) |
| Mounting Type | Surface Mount |
| Forward Current (A) | 25 (mA) |
| Lens Finish | Clear |
| Viewing Angle | 140 ° |
| Led Colour(S) | Orange |
| Forward Voltage (V) | 2 V |
| Luminous Intensity | 80 mcd |
| Package Type | 1608 (0603) |
| Number Of Leds | 1 |
| Lens Shape | Rectangle |
| Number Of Pins | 2 |
No issues have been reported for the 598-8030-107F
