598-8510-207F

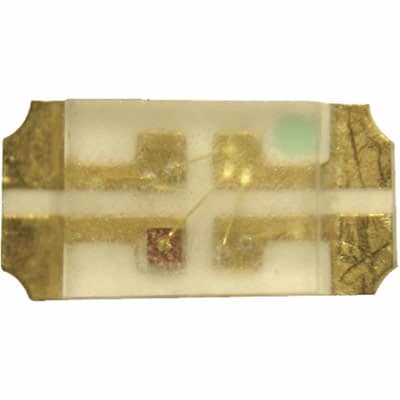

Led, 1208 Smt Led,Red/Green,Alingap ,Water Clear Lens,160 Deg Viewing Angle | Dialight 598-8510-207F
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 598-8510-207F by Dialight and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 598-8510-207F
| Part Name | 598-8510-207F |
| Manufacturer | Dialight |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | Clear |
| Dimensions | 3.2 x 1.48 x 1 (mm) |
| Mounting Type | Surface Mount |
| Forward Current (A) | 20 (mA) |
| Lens Finish | Clear |
| Viewing Angle | 160 ° |
| Number Of Leds | 2 |
| Forward Voltage (V) | 2 V |
| Luminous Intensity | 50 mcd, 80 mcd |
| Dominant Wavelength | 565 / 635 nm |
| Led Colour(S) | Green, Red |
| Lens Shape | Rectangle |
| Package Type | 3020 (1208) |
| Number Of Pins | 4 |
