5XP-A

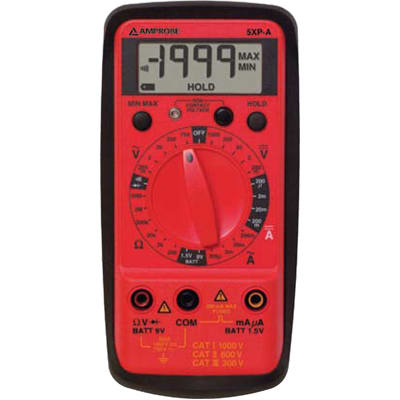

Multimeter, Digital, 1000 mV, 10, 100, 1000 VDC Voltage, Range, DC, RS-232, LCD | Amprobe 5XP-A
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5XP-A by Amprobe and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5XP-A
| Part Name | 5XP-A |
| Manufacturer | Amprobe |
| Category | Test & Measurement |
| RoHS | RoHS Compliant By Exemption |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Absolute Maximum Dc Current Measurement (A) | 200 (mA dc) |
| Model Number (P) | 5XPA |
| Best Dc Current Accuracy (A) | ±1.5% + 1 Digit |
| Absolute Maximum Ac Voltage Measurement (V) | 600 (V ac) |
| Best Ac Current Accuracy (A) | ±2.5% + 5 Digits |
| Absolute Maximum Dc Voltage Measurement (V) | 600 (V dc) |
| Width | 72 (mm) |
| Best Dc Voltage Accuracy (V) | ±1% + 1 Digit |
| Dc Voltage Measurement Resolution (V) | 100 (µV dc) |
| Dimensions | 32 x 72 x 155 (mm) |
| Dc Current Measurement Resolution (A) | 0.1 (µA dc) |
| Resistance Measurement Resolution | 100 (mΩ) |
| Maximum Frequency | 500 (Hz) |
| Battery Type | 9V |
| Absolute Maximum Resistance Measurement | 20 (MΩ) |
| Maximum Operating Temperature | +50 (°C) |
| Ac Current Measurement Resolution (A) | 0.1 (µA ac) |
| Best Ac Voltage Accuracy (V) | ±1.5% + 5 Digits |
| Safety Category Level | CAT II, CAT III |
| Length | 32 (mm) |
| Absolute Maximum Ac Current Measurement (A) | 200 (mA ac) |
| Display Type | Digital |
| Weight | 210 (g) |
| Best Resistance Measurement Accuracy | ±2% + 5 Digits |
| Safety Category Voltage (V) | 300 V, 600 (V) |
| Multimeter Type | Handheld |
| Height | 155 (mm) |
| Ac Voltage Measurement Resolution (V) | 100 (µV ac) |
| Calibrated | UKAS |
| Minimum Operating Temperature | 0 (°C) |
| Functions Measured | AC Current, AC Voltage, Battery Test, Continuity, DC Current, DC Voltage, Diode, Resistance |
Inventory for the 5XP-A by Amprobe from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
89
|
1 x $134.99
|
Visit Site | |
| Onlinecomponents |
6
|
|
Visit Site | |
| RS Americas |
13
|
1 x $103.69
|
Visit Site | |
| RS UK |
100
|
1 x $164.50
|
Visit Site | |
| Verical |
5
|
|
Visit Site |
