6-102084-1
SnapVerified
10 MODII HORZ DR CE EESS 100CL
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6-102084-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

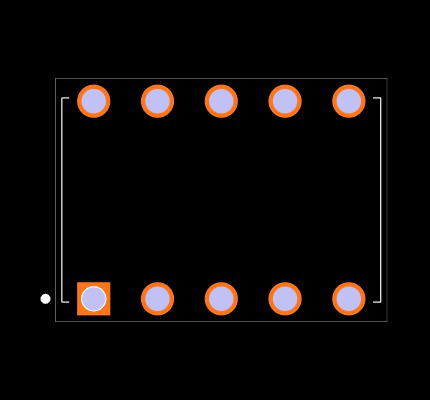

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6-102084-1
| Part Name | 6-102084-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .1 |
| Housing Material | Polyester - GF |
| Insulation Resistance | 5000 |
| Operating Voltage (V) | 333 |
| Number of Positions | 10 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.57 |
| Termination Post & Tail Length | .115 |
| Contact Current Rating (Max) (A) | 2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 6-102084-1 |
| PCB Mount Orientation | Right Angle |
| Connector Height | 6.05 |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 100 – 200 |
| Sealable | No |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Temperature Range | -65 – 105 |
| High Temperature Compatible | Yes |
| Packaging Method | Box & Tube |
| Packaging Quantity | 45 |
| Contact Configuration | Short Point |
| Contact Type | Socket |
| Applied Pressure | Standard |
| Contact Mating Area Plating Material | Tin-Lead |
| Stackable | Yes |
| Approved Standards | UL E28476 |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | .31 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| Connector Profile | Standard |
| Solder Process Feature | Board Standoff |
| PCB Contact Termination Area Plating Material | Tin-Lead |
