6-1376383-2
5MM B-T-W CONN. 3P HDR ASSY W/
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6-1376383-2 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

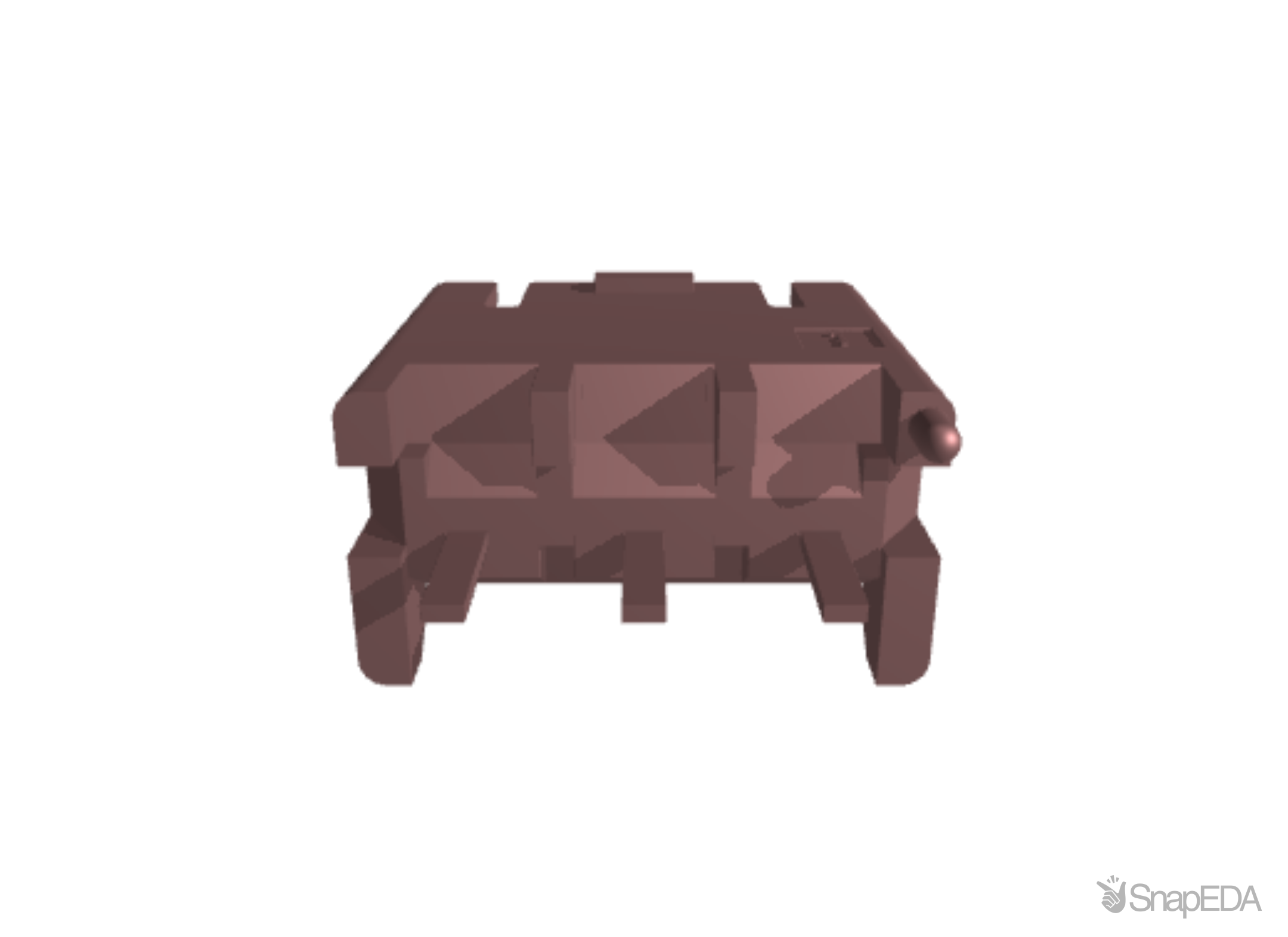

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6-1376383-2
| Part Name | 6-1376383-2 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | 5 |
| Keying | B |
| Agency/Standard | UL |
| Circuit Application | Power |
| Contact Termination Area Plating Finish | Matte |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Mating Retention Type | Latch |
| Mating Retention | With |
| Width | .555 |
| Contact Termination Area Plating Thickness | 150 – 350 |
| Operating Voltage (V) | 300 |
| For Use With | Plug Housing |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Mounting Post |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .063 |
| Housing Material | Nylon 6/6 GF |
| Termination Post & Tail Length | .14 |
| CSA File Number | LR7189 |
| Mating Post Length | .248 |
| TE Internal Number | 6-1376383-2 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Agency/Standard Number | E28476 |
| Housing Color | Red |
| Header Type | Shrouded |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Length | 16.6 |
| Operating Temperature Range | -40 – 105 |
| Packaging Method | Bag |
| Housing Type | Receptacle |
| Packaging Quantity | 100 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 3 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Tin |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Contact Base Material | Copper Alloy |
| Contact Retention | Without |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | .55 |
| Contact Current Rating (Max) (A) | 10 |
| Contact Mating Area Plating Thickness | 39.36 |
| Product Type | Header |
| Contact Type | Tab |
| Number of Power Positions | 3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
