6-1888291-9
SnapVerified
FPC (Flexible Printed Circuit) Connectors
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6-1888291-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

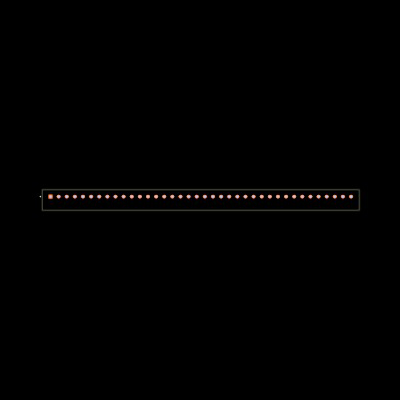

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6-1888291-9
| Part Name | 6-1888291-9 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Cable Entry | Vertical |
| Mating Retention Type | Latch |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Plug |
| Number of Positions | 38 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.57 |
| TE Internal Number | 6-1888291-9 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Blue |
| Header Type | Shrouded |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Insertion Force Type | Zero Insertion Force (ZIF) |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Package |
| Tail Length | .1 |
| Packaging Quantity | 50 |
| Connector Type | Header |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | Nylon |
| Contact Base Material | Phosphor Bronze |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 2 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 100 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 6-1888291-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
200 x $24.08
|
Visit Site | |
| Mouser |
|
|
Visit Site |
No issues have been reported for the 6-1888291-9
