6-2271110-2
M12, MALE, A CODE, 12P, PG9 (AU)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6-2271110-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

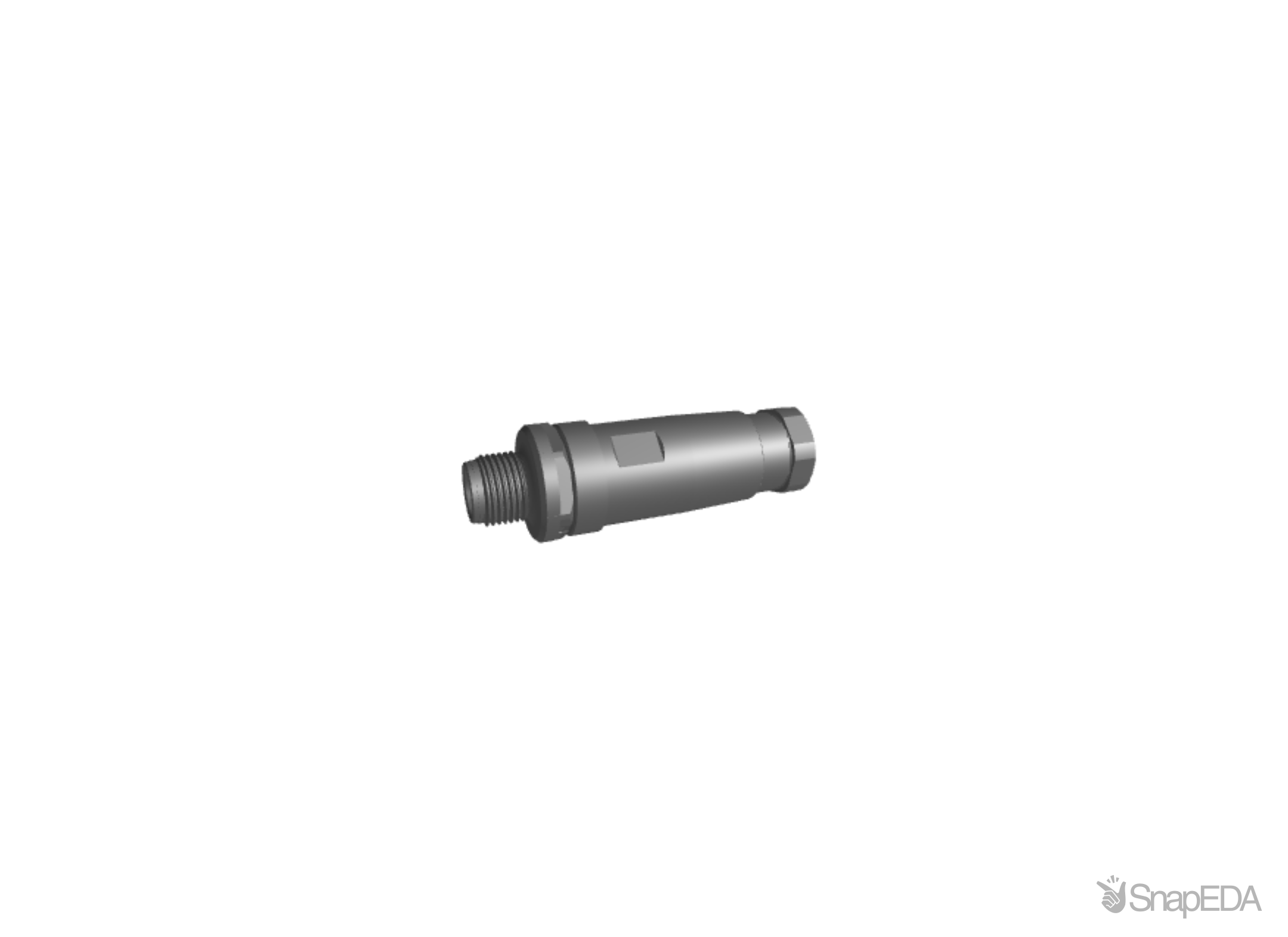

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6-2271110-2
| Part Name | 6-2271110-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Shell Material | PA |
| Mating Retention | With |
| Contact Layout Arrangement | Circular |
| Shell Size | 12 |
| Connector Style | Plug |
| Preloaded | Yes |
| TE Internal Number | 6-2271110-2 |
| Number of Positions | 12 |
| Connector System | Wire-to-Wire |
| Number of Signal Positions | 12 |
| Sealable | Yes |
| IP Water Sealing Level | 7 |
| Shielded | No |
| IP Dust Sealing Level | 6 |
| RoHS | True |
| Polarization Code | A |
| Product Type | Connector |
| Reverse Gender | Standard |
| Shell Type | Plastic |
| Field Serviceable | Yes |
| Contact Type | Pin |
| Number of Power Positions | 0 |
| Wire Size | .25 |
| Insulation Material | Polyamide 66 GF25 |
