6-532956-0
SnapVerified
70 MODII 2PC CE RCPT ASSY, RoHS
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6-532956-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

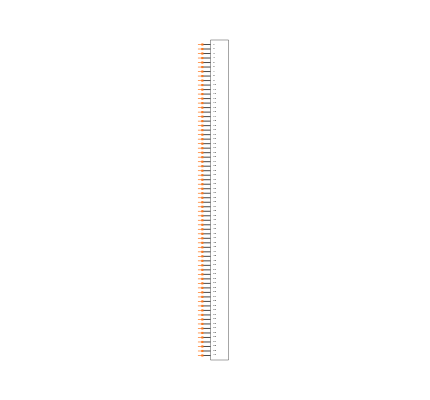

Symbol
No web preview
This Symbol is Available for

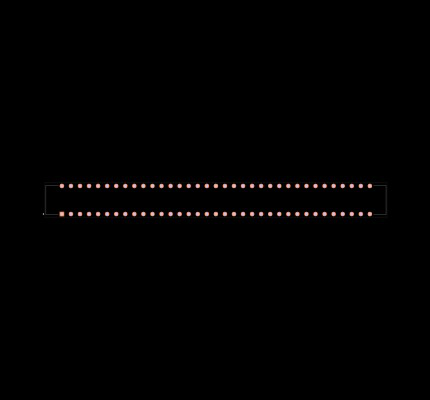

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6-532956-0
| Part Name | 6-532956-0 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Guide Pin Slots |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Mating Retention | Without |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| Number of Positions | 70 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Housing Material | Thermoplastic |
| Termination Post & Tail Length | .115 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| TE Internal Number | 6-532956-0 |
| PCB Mount Orientation | Right Angle |
| PCB Mount Alignment | Without |
| Connector Height | 6.05 |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 50 – 100 |
| Termination Resistance | 12 |
| Contact Base Material | Phosphor Bronze |
| Contact Shape | Square |
| Housing Color | Black |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Tube |
| Packaging Quantity | 25 |
| Contact Layout | Inline |
| Contact Type | Socket |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Approved Standards | CSA LE7189 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 30 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 3 |
| High Temperature Compatible | Yes |
| Solder Process Feature | Board Standoff |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
