6-87961-4
SnapVerified
130 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6-87961-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

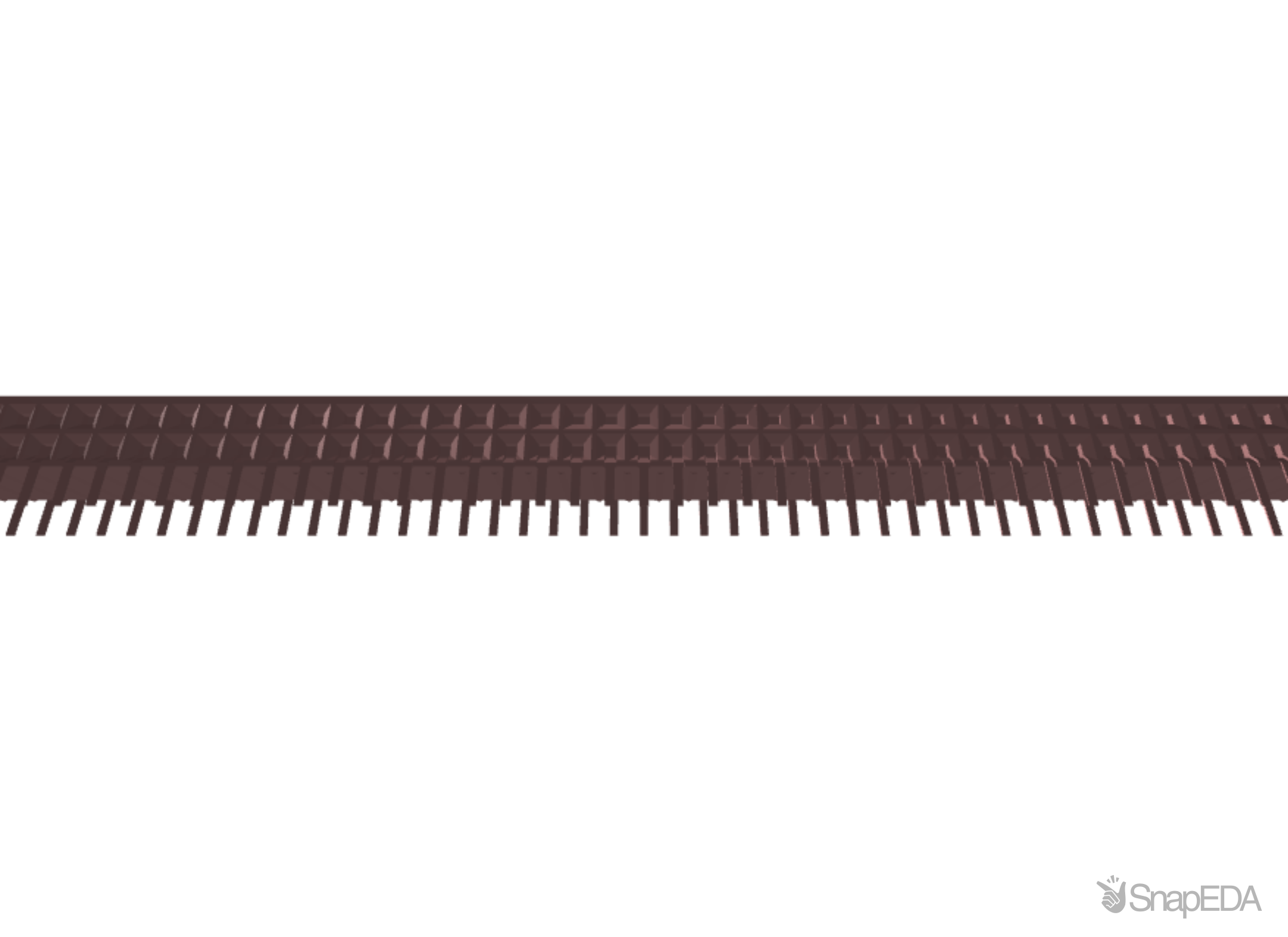

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6-87961-4
| Part Name | 6-87961-4 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | .115 |
| TE Internal Number | 6-87961-4 |
| PCB Mount Orientation | Right Angle |
| Contact Protection Type | Closed Entry Housing |
| Connector Height | 6.05 |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 50 |
| Sealable | No |
| Housing Color | Natural |
| Mating Entry Location | Side |
| Connector Profile | Standard |
| Packaging Method | Tube |
| Packaging Quantity | 15 |
| Contact Configuration | Short Point |
| Contact Type | Socket |
| Number of Positions | 130 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Contact Base Material | Phosphor Bronze |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Contact Mating Area Plating Material Thickness | 1.27 |
| Row-to-Row Spacing | 2.54 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| High Temperature Compatible | No |
| Solder Process Feature | Board Standoff |
| Stackable | No |
