6-968971-1
MCP 2.8 9 way receptacle housing, Key C | TE Connectivity 6-968971-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6-968971-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

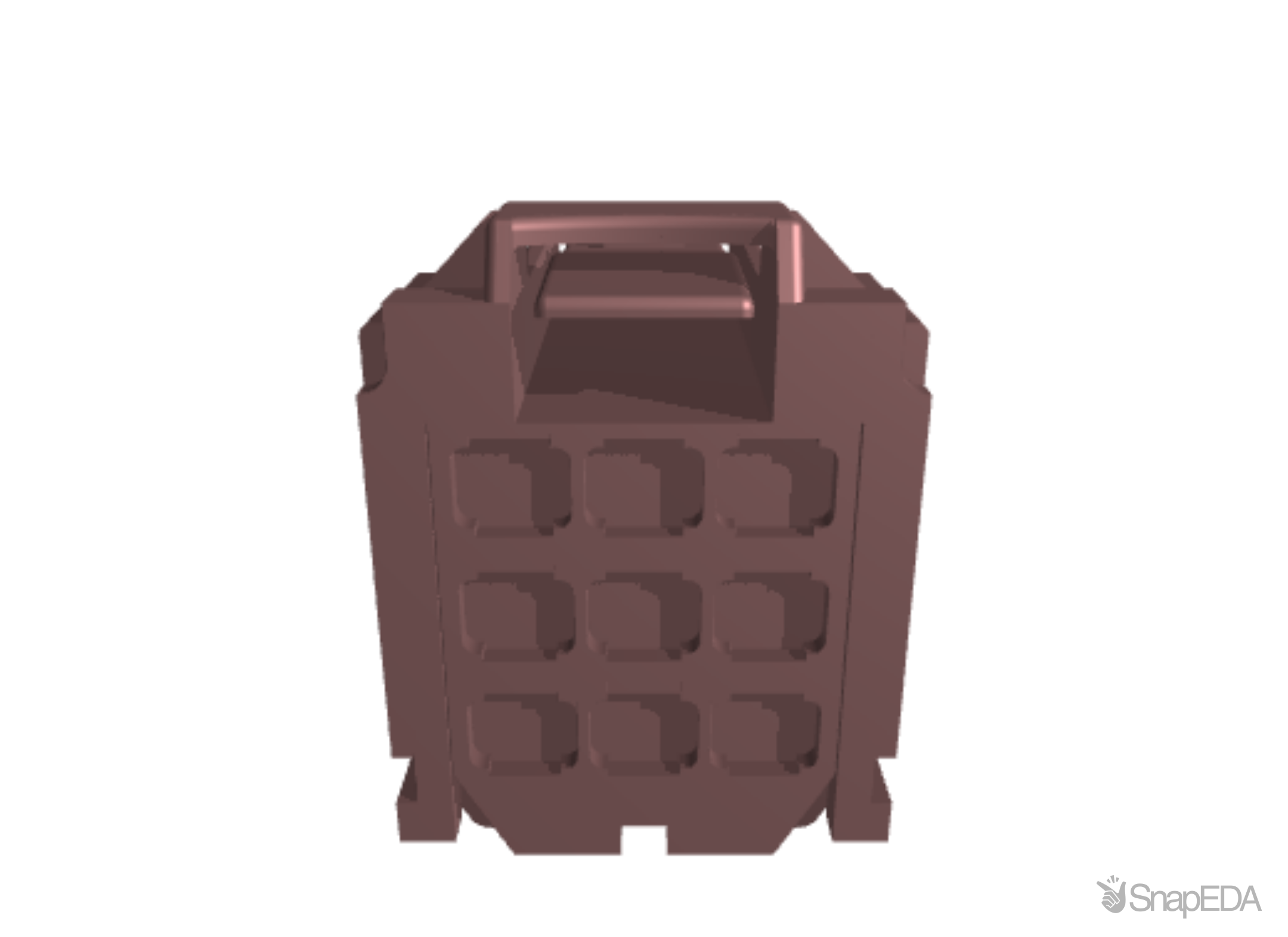

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6-968971-1
| Part Name | 6-968971-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 5 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 21 |
| Operating Voltage (V) | 28 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 9 |
| Operating Temperature Range | -40 – 120 |
| TE Internal Number | 6-968971-1 |
| Connector System | Wire-to-Wire |
| Number of Rows | 3 |
| Strain Relief | No |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | No |
| Hybrid Connector | No |
| Packaging Method | Carton |
| Packaging Quantity | 1800 |
| Length | 21 |
| Cable Exit Angle | 180° |
| Serviceable | No |
| RoHS | True |
| Mating Tab Width | 2.8 |
| Sealable | No |
| Color | Blue |
| Body Material | PBT GF |
| Height | 24 |
| Primary Locking Feature | On the Terminal |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Gender | Female |
| Colour | Blue |
| Height | 28 (mm) |
| Housing Material | Nylon |
| Width | 21 (mm) |
| Depth | 23.5 (mm) |
| Number Of Rows | 3 |
| Contact Plating | Tin |
| Series | AMP MCP 2.8 |
| Number Of Contacts | 9 |
| Type | Automotive connector housing |
| Contact Material | Copper Alloy |
