60326420112120
RF Connectors / Coaxial Connectors WR-SMA Cable Connect BH JK SC 1.13
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 60326420112120 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

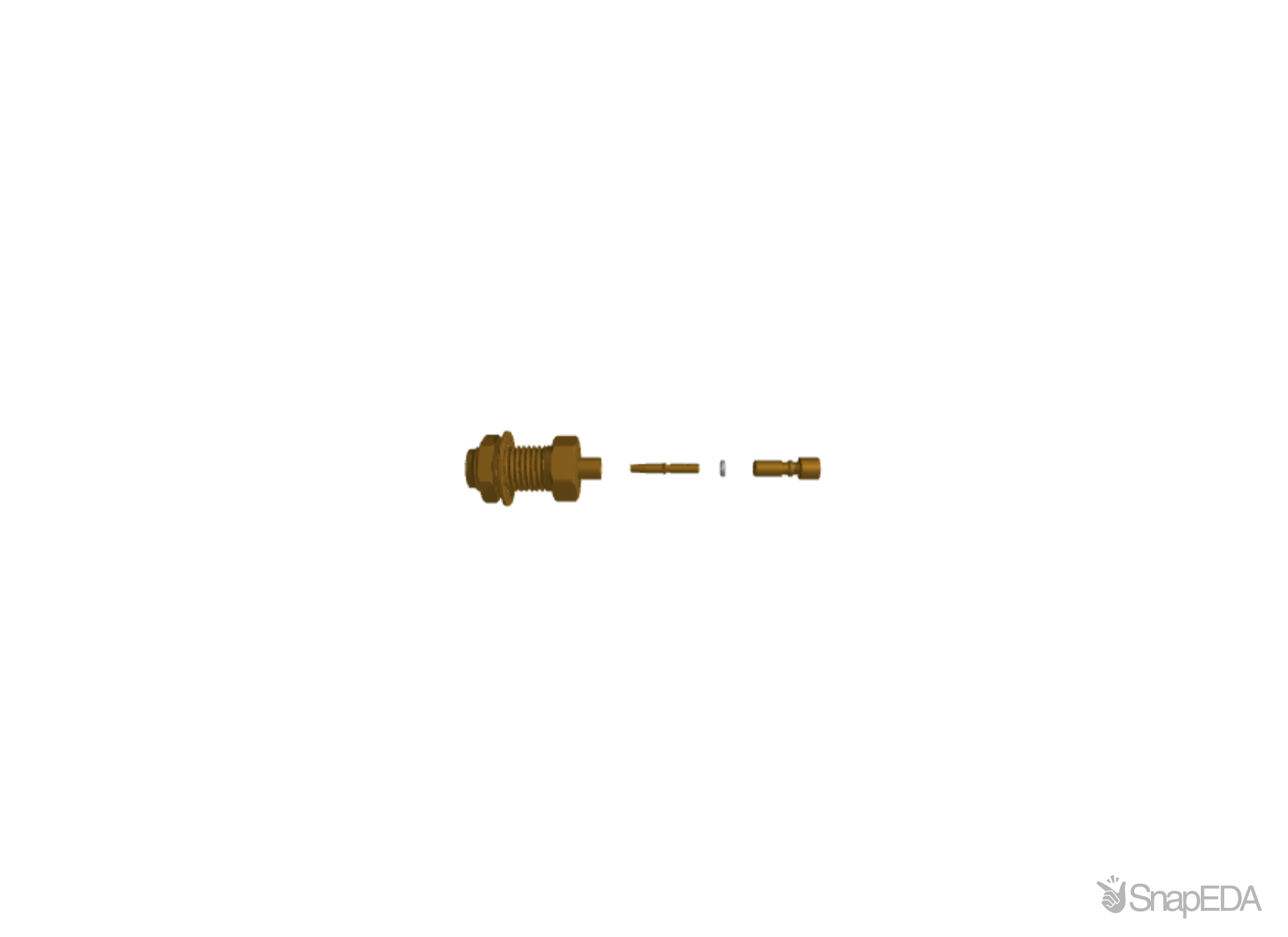

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 60326420112120
| Part Name | 60326420112120 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | SMA Cable Connector Bulkhead Jack |
| Division | Electromechanics |
| Article Description Long | Soldered-Crimp_Flexible Cable 1.13_Unit Bag for 1pc |
| Product Family | Coaxial Connectors |
| Weight | 4.08 |
| Ro Hs Approval | Compliant |
| Spq | 1 |
| Current Revision (A) | 1.0.0 |
| Packaging Type | Bag |
| Height | {'is_url': False, 'value': u''} |
| Reach Approval | Conform or declared |
| Width | {'is_url': False, 'value': u''} |
| Length | {'is_url': False, 'value': u''} |
| Withstanding Voltage (V) | 500 |
| Product Unit | eiCan |
| Product Group Description | Connectors |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the 60326420112120
If you experienced any issues with this part, please report it.
