6053226-1
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Threaded Solder
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6053226-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

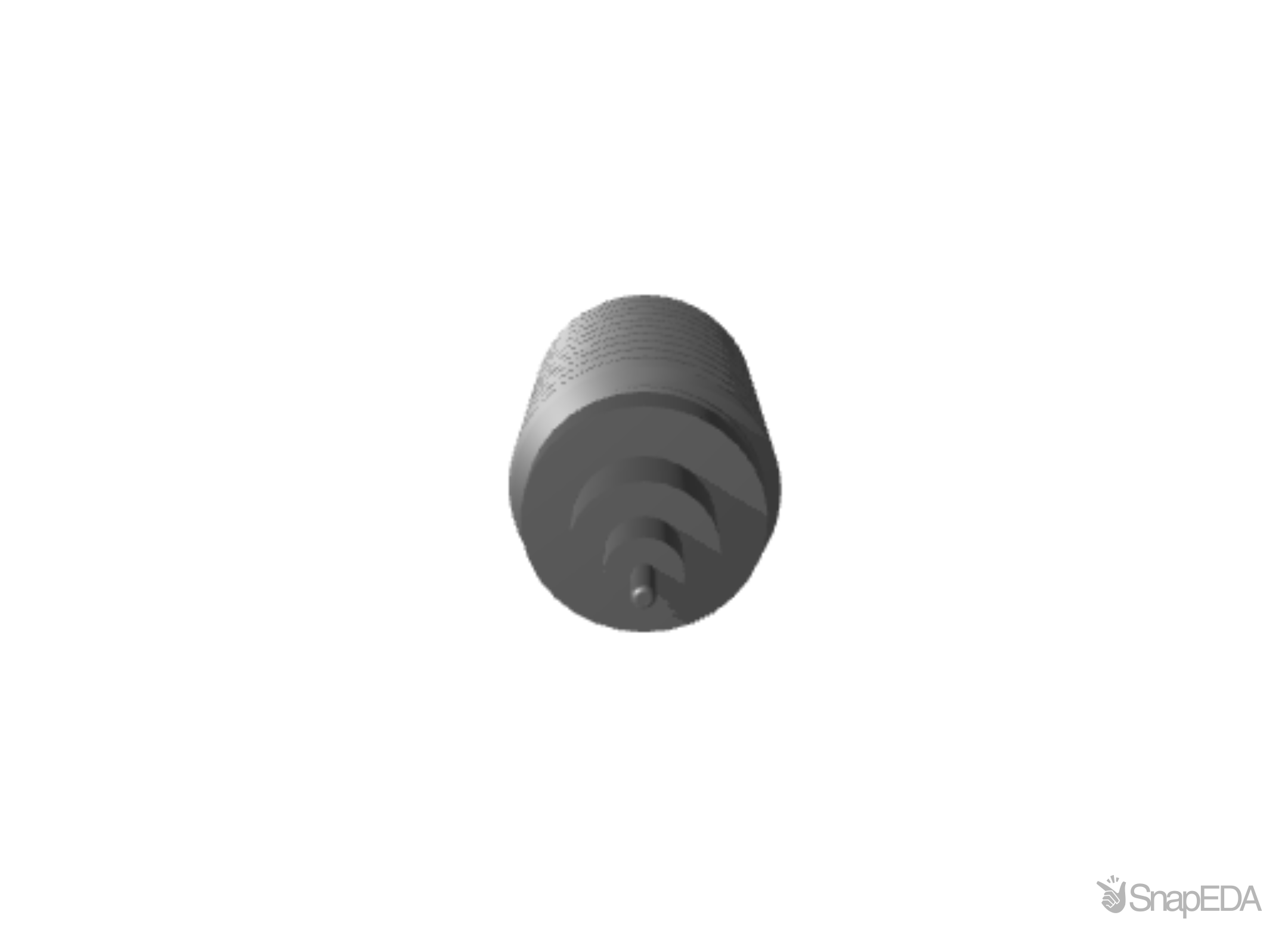

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6053226-1
| Part Name | 6053226-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Mechanical |
| Cable Connector Orientation | Straight |
| Pin Diameter Accepted | .51 |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| RF Connector Style | Jack |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | TFE Fluorocarbon |
| Number of Positions | 1 |
| Termination Method to Wire & Cable | Solder |
| Screw & Hole Thread Size | 13153 |
| TE Internal Number | 6053226-1 |
| RF Connector Coupling Mechanism | Screw |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Cable-to-Board |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | Yes |
| Connector Mounting Type | Panel |
| Product Length | .528 |
| RF Connector Mated Outer Diameter (Approximate) | 6.35 |
| Panel Attachment Style | Front Mount |
| Operating Temperature Range | -65 – 125 |
| Packaging Method | Carton |
| RF Interface | SMA |
| Detent | Without |
| Body Material | Stainless Steel |
| Connector Seal Type | Gasket |
| Operating Frequency | 26 |
| RoHS | True |
| RF Connector Contact Configuration | Not Captivated |
| RF Connector Center Contact Plating Material | Gold |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 6053226-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| TE Connectivity |
113
|
|
