614004134726
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 614004134726 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

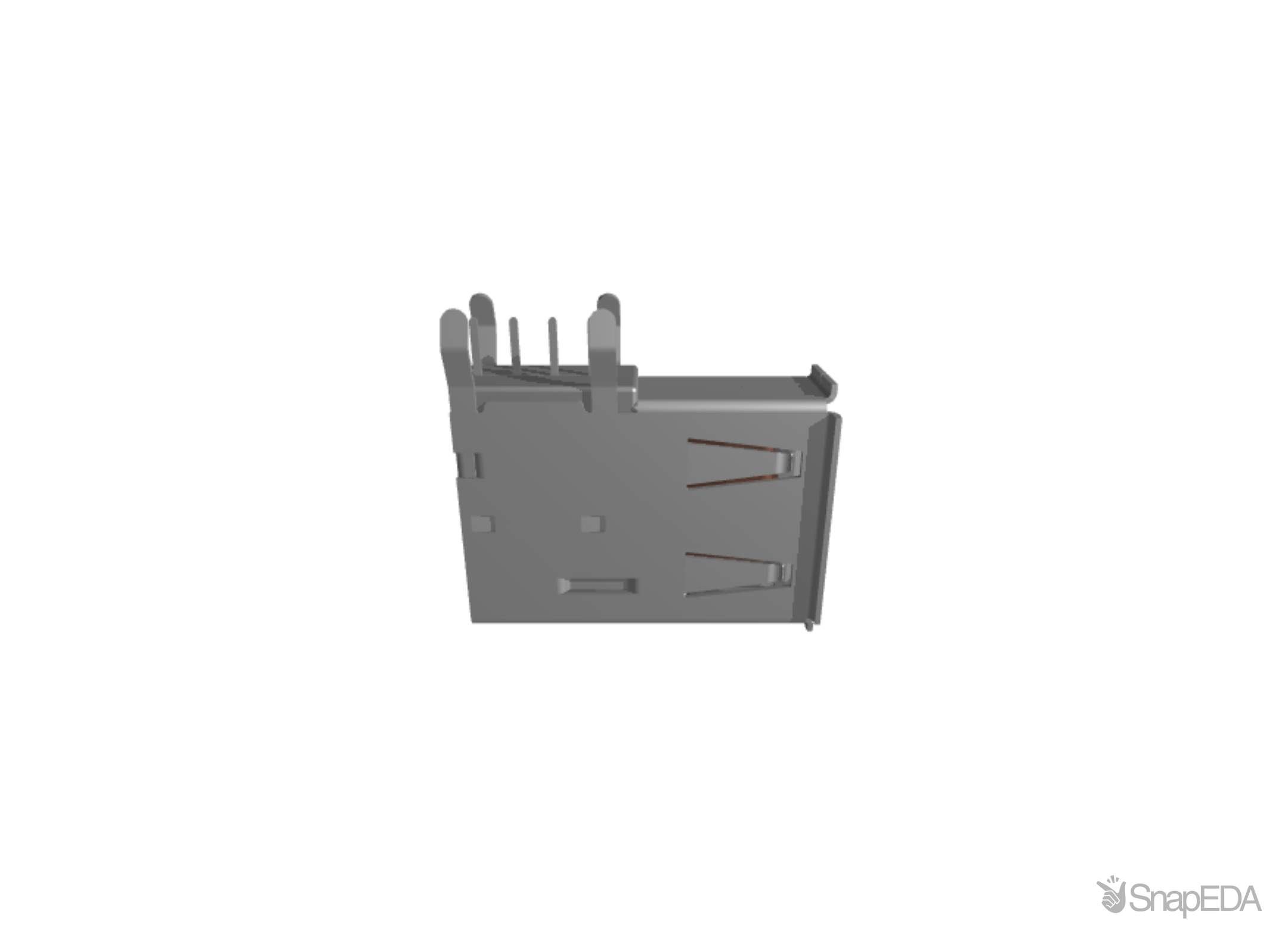

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 614004134726
| Part Name | 614004134726 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | USB 2.0 Type A Up Right WR-USB2 |
| Contact Resistance | 0.02 |
| Article Description Long | Type A Up Right THT |
| Rated Current (A) | 1.5 |
| Product Unit | eiCan |
| Current Revision (A) | 3.0.0 |
| Reach Approval | Conform or declared |
| Width | {'is_url': False, 'value': u''} |
| Division | Electromechanics |
| Product Family | Input/Output Connectors |
| Length | {'is_url': False, 'value': u''} |
| Withstanding Voltage (V) | 750 |
| Product Group Description | Connectors |
| RoHS | True |
| Life Cycle Status | Active |
| Weight | 2.6119999886 |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Spq | 50 |
| Packaging Type | Tray |
| Height | {'is_url': False, 'value': u''} |
| Working Voltage (V) | 30 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.5 (A) |
| Usb Version | 2.0 |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 30.0 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Minimum Operating Temperature | -40.0 (°C) |
| Series | WR-COM |
| Maximum Operating Temperature | +105 (°C) |
| Usb Type | A |
| Contact Material | Copper Alloy |
No issues have been reported for the 614004134726
