62040-2
Splc Amvar 1500-5000 .020Br | TE Connectivity 62040-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 62040-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

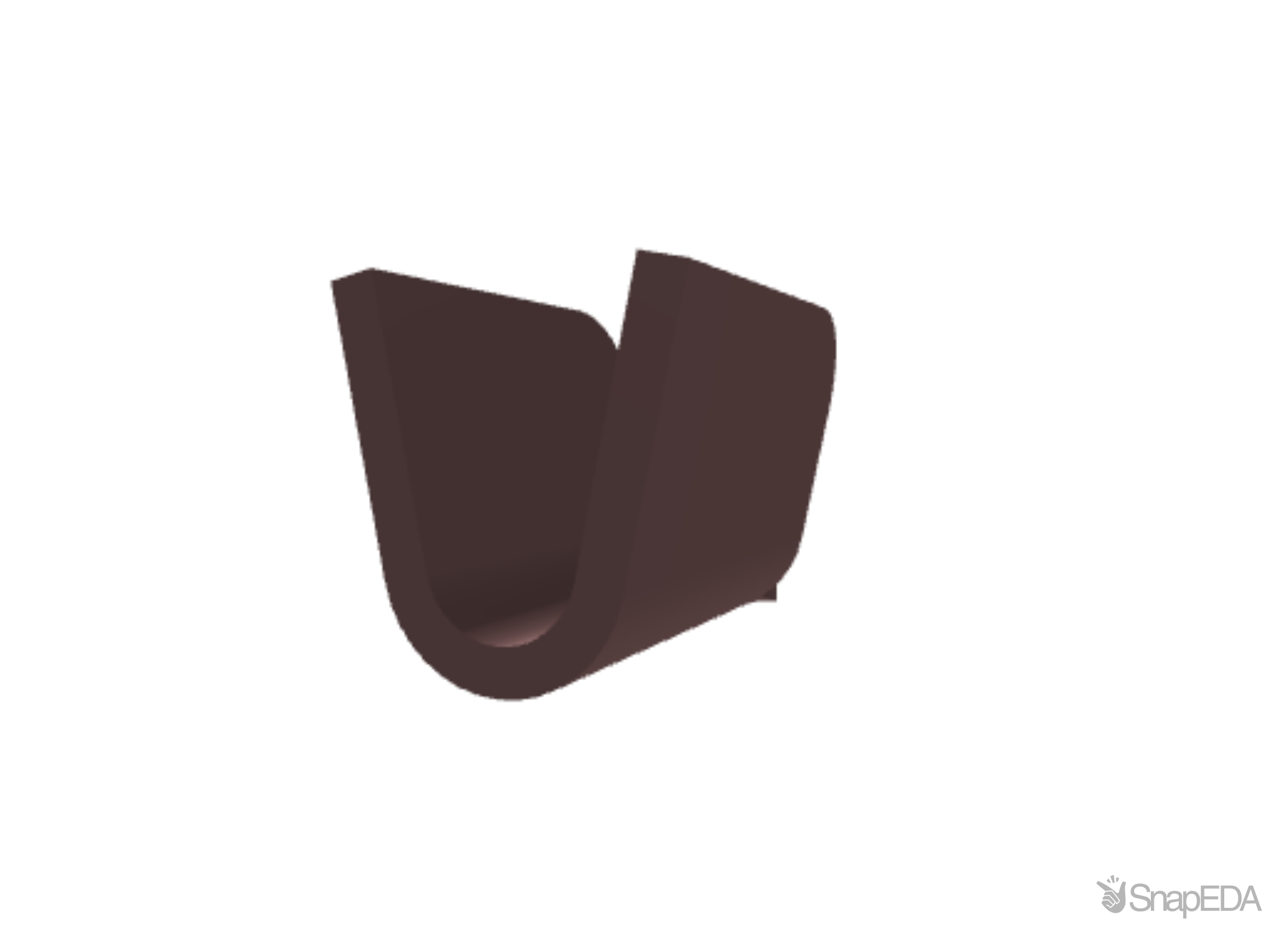

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 62040-2
| Part Name | 62040-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Material Thickness | .51 |
| Serrated | Yes |
| Wire/Cable Type | Magnet Wire |
| Operating Voltage (V) | 250 V |
| Insulated | No |
| Splice Type | Pigtail Splice |
| Plating Material | Unplated |
| Contact Plating Material | Unplated |
| TE Internal Number | 62040-2 |
| Overall Length | .225 |
| Crimp Width | .11 |
| Sealable | No |
| Wire Insulation Support | Without |
| Terminal & Splice Type | Splice |
| Packaging Method | Strip |
| Packaging Quantity | 30000 |
| Splice Capacity | 3 |
| Barrel Type | Open Barrel |
| Splice Material | Brass |
| RoHS | True |
| Number of Serrations | 7 |
| Product Type | Splice |
| Weight per Piece | .2 |
| Heavy Duty | No |
| Government Qualified | No |
| Wire Size | 18.5 – 13.5 |
| Strip Orientation | End Feed |
