62160-1
Contact SKT Crimp ST Cable Mount Strip
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 62160-1 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

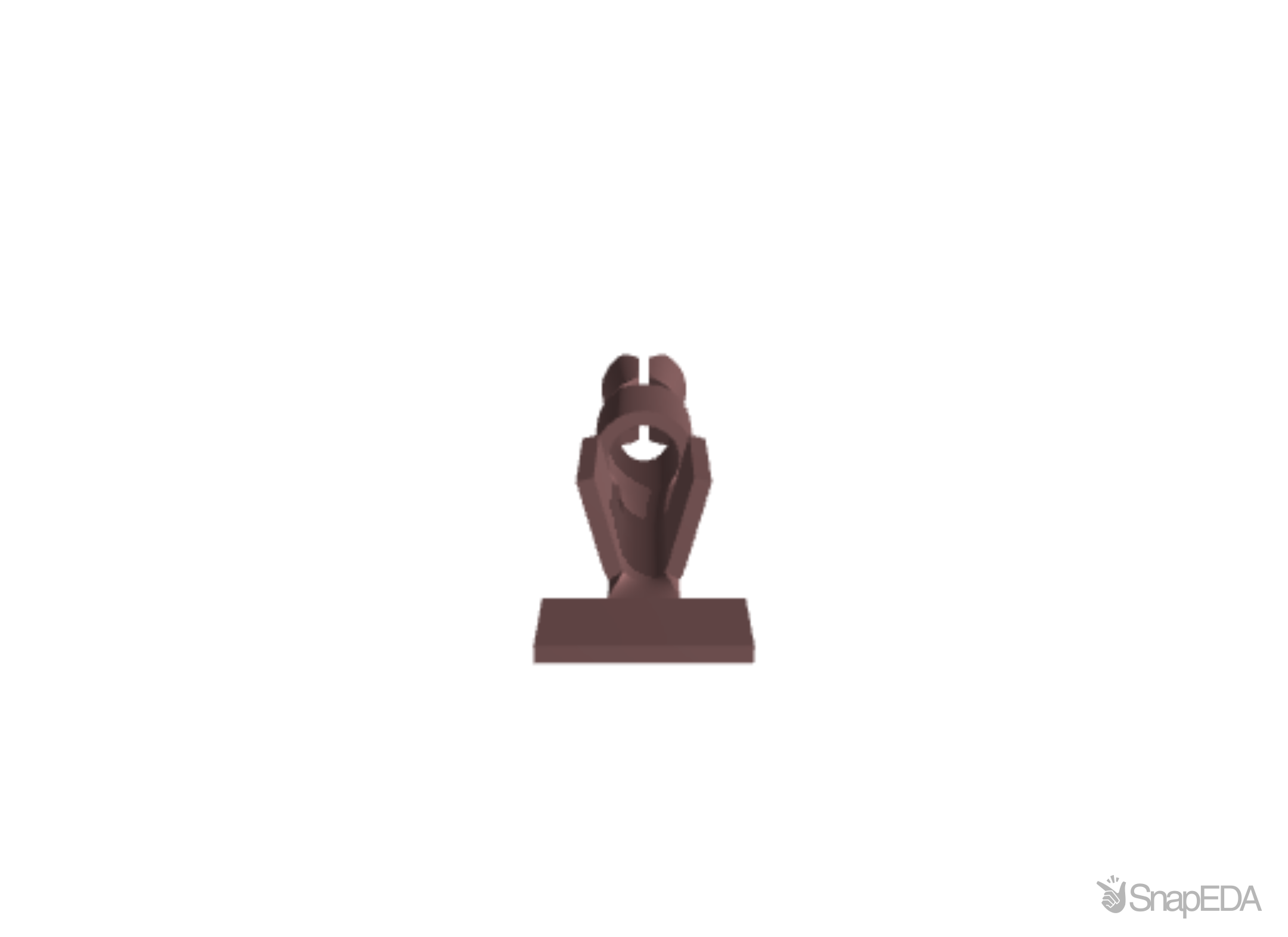

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 62160-1
| Part Name | 62160-1 |
| Manufacturer | TE Connectivity / AMP |
| Material Thickness | .0126 |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Strip |
| Packaging Quantity | 16000 |
| Terminal Orientation | Straight |
| Wire/Cable Type | Discrete Wire |
| Barrel Type | Open Barrel |
| Pin Diameter | .04 |
| Insulated | No |
| Barrel Inside Diameter | .88 |
| Plating Material | Tin |
| Heavy Duty | No |
| TE Internal Number | 62160-1 |
| Wire Insulation Support | Without |
| Overall Length | 9.14 |
| Wire Size | 24 – 20 |
| Terminal Type | Receptacle |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
