629105136821

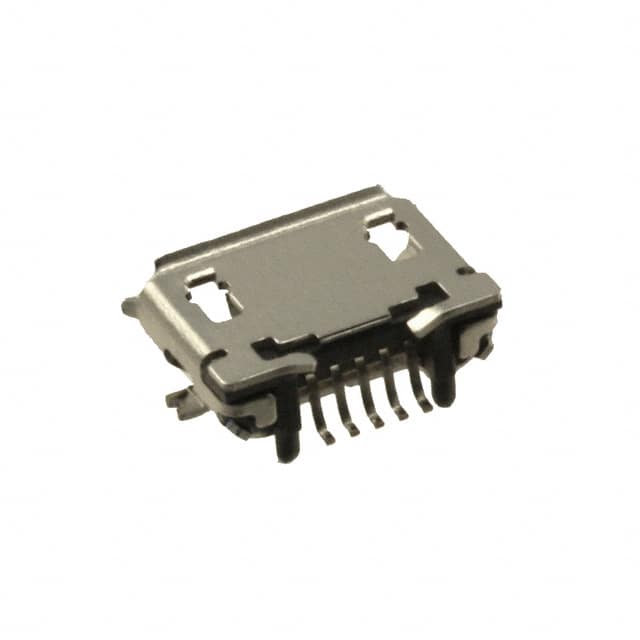

USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 629105136821 by Würth Elektronik Midcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

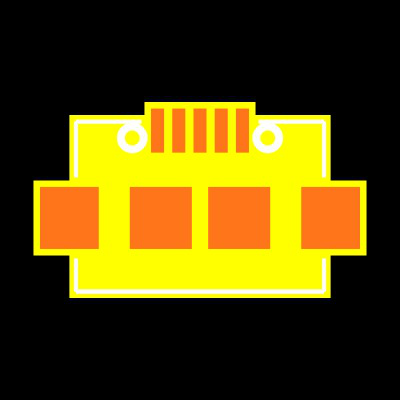

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 629105136821
| Part Name | 629105136821 |
| Manufacturer | Würth Elektronik |
| Product Series Size | Micro USB 2.0 Type B SMT Horizontal 5 Contacts WR-USB2 |
| Division | Electromechanics |
| Article Description Long | Micro Type B Horizontal SMT - with Pads & Pegs - T&R Packaging |
| Width | {'is_url': False, 'value': u''} |
| Product Family | Input/Output Connectors |
| Contact Resistance | 0.03 |
| Rated Current (A) | 1 |
| Spq | 1400 |
| Current Revision (A) | 1.0.0 |
| Packaging Type | 13" Plastic Reel |
| Height | {'is_url': False, 'value': u''} |
| Weight | 0.1 |
| Length | {'is_url': False, 'value': u''} |
| Working Voltage (V) | 30 |
| Withstanding Voltage (V) | 100 |
| Product Unit | eiCan |
| Operating Temperature | -40 °C up to +85 °C |
| Product Group Description | Connectors |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 629105136821 by Würth Elektronik Midcom from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
42
|
|
Visit Site | |
| Farnell UK |
2,123
|
|
Visit Site | |
| Newark |
2,123
|
|
Visit Site | |
| RS UK |
34
|
|
Visit Site | |
| element14 Singapore |
3,044
|
|
Visit Site |
No issues have been reported for the 629105136821
