62PC8FS
DIN Receptacle Receptacle 8 Female PCB Mount | Switchcraft 62PC8FS
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 62PC8FS by SWITCHCRAFT and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

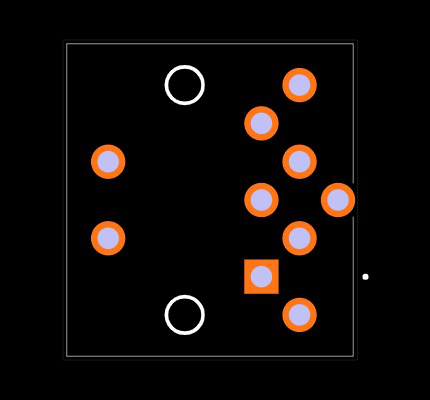

Footprint
No web preview
This Footprint is Available for

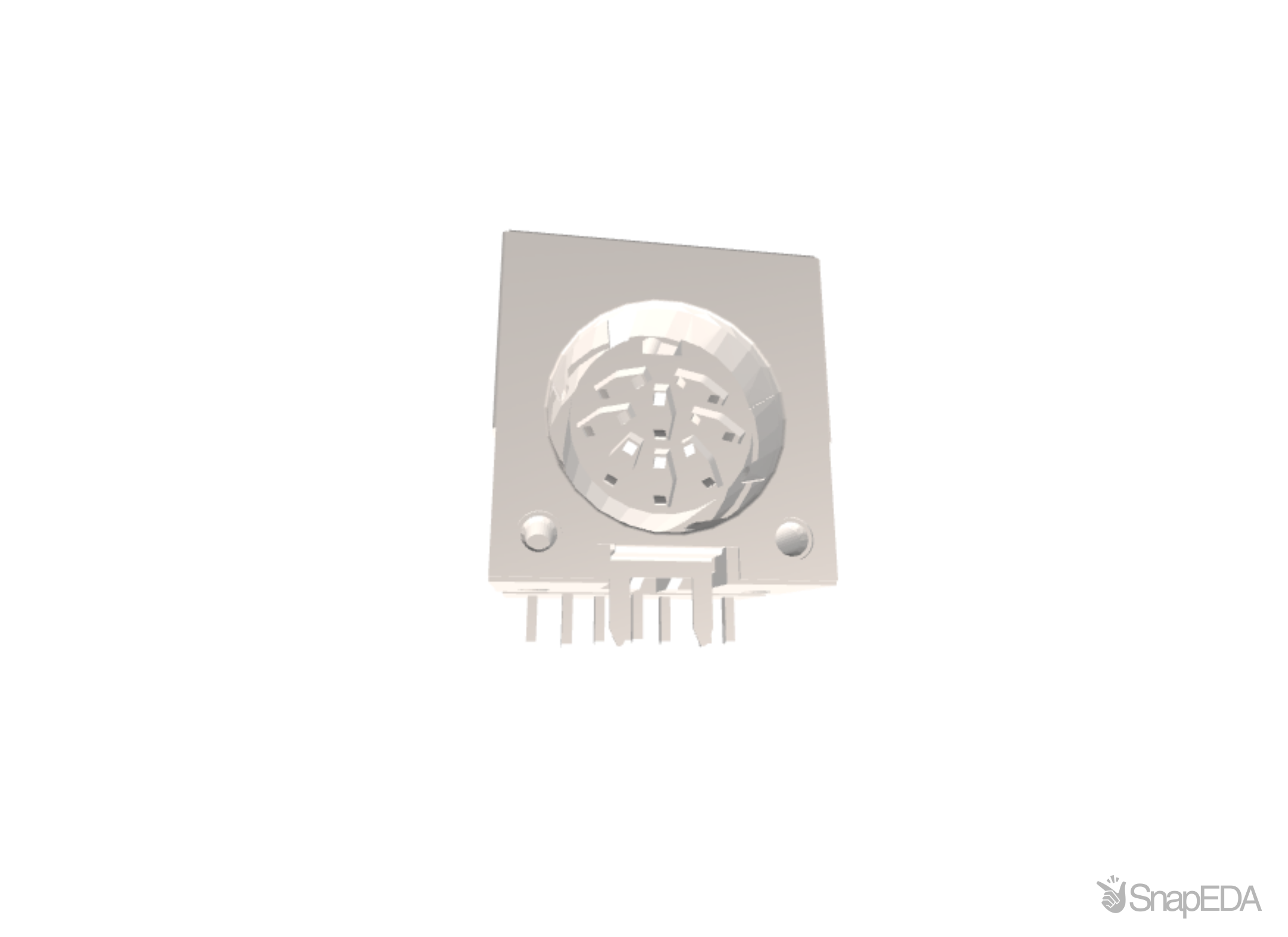

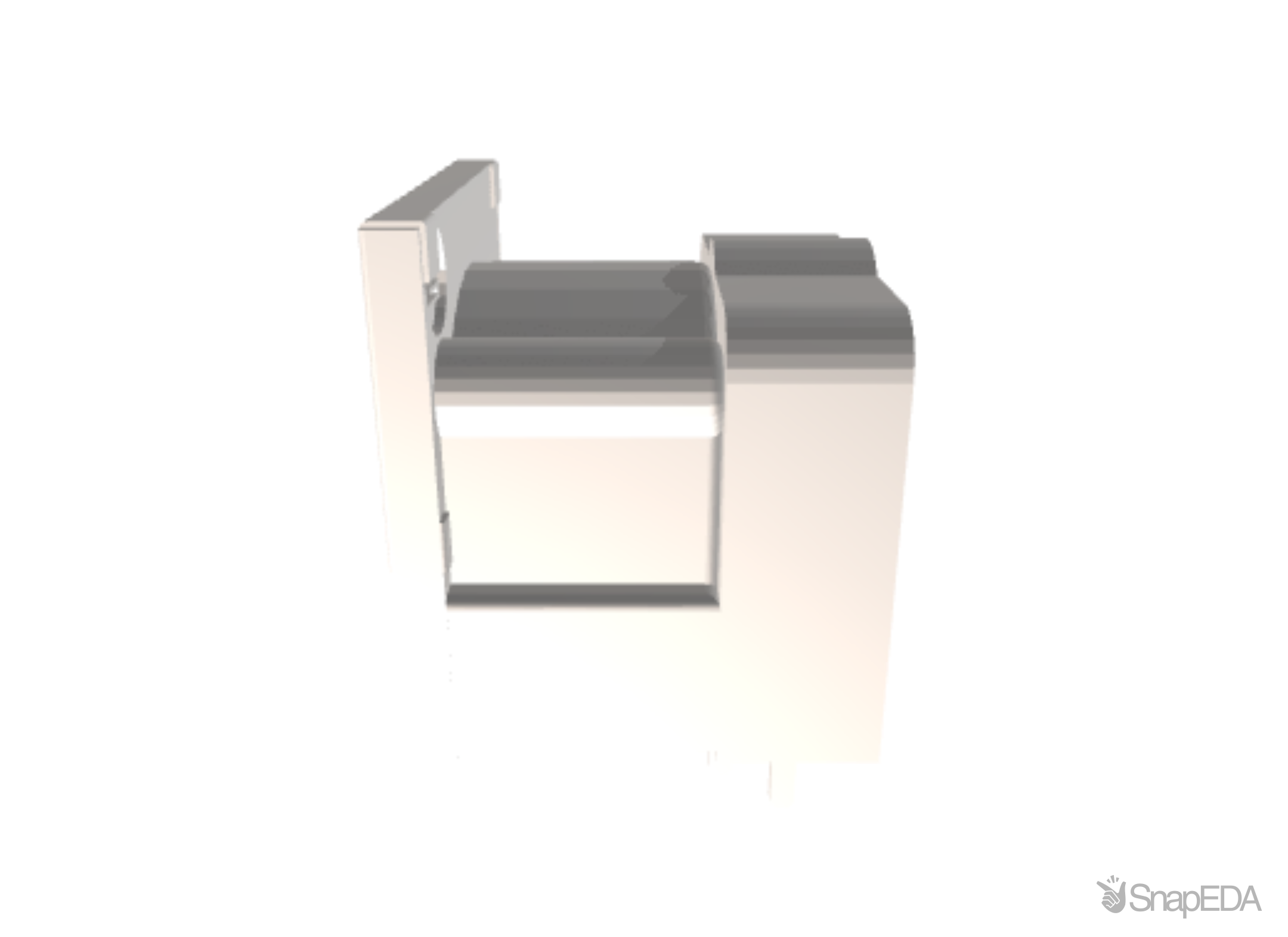

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 62PC8FS
| Part Name | 62PC8FS |
| Manufacturer | Switchcraft |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3 (A) |
| Mounting Type | PCB Mount |
| Voltage Rating (V) | 34 V dc |
| Gender | Female |
| Body Orientation | Right Angle |
| Housing Material | Die Cast Zinc Alloy |
| Contact Plating | Tin |
| Series | 62PC |
| Shielded/Unshielded | Shielded |
| Number Of Contacts | 8 |
