632723100011

Name: 632723100011
Brand: Wurth Electronics

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 632723100011 by Wurth Electronics and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

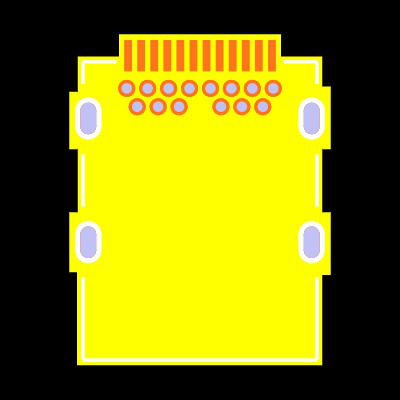

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

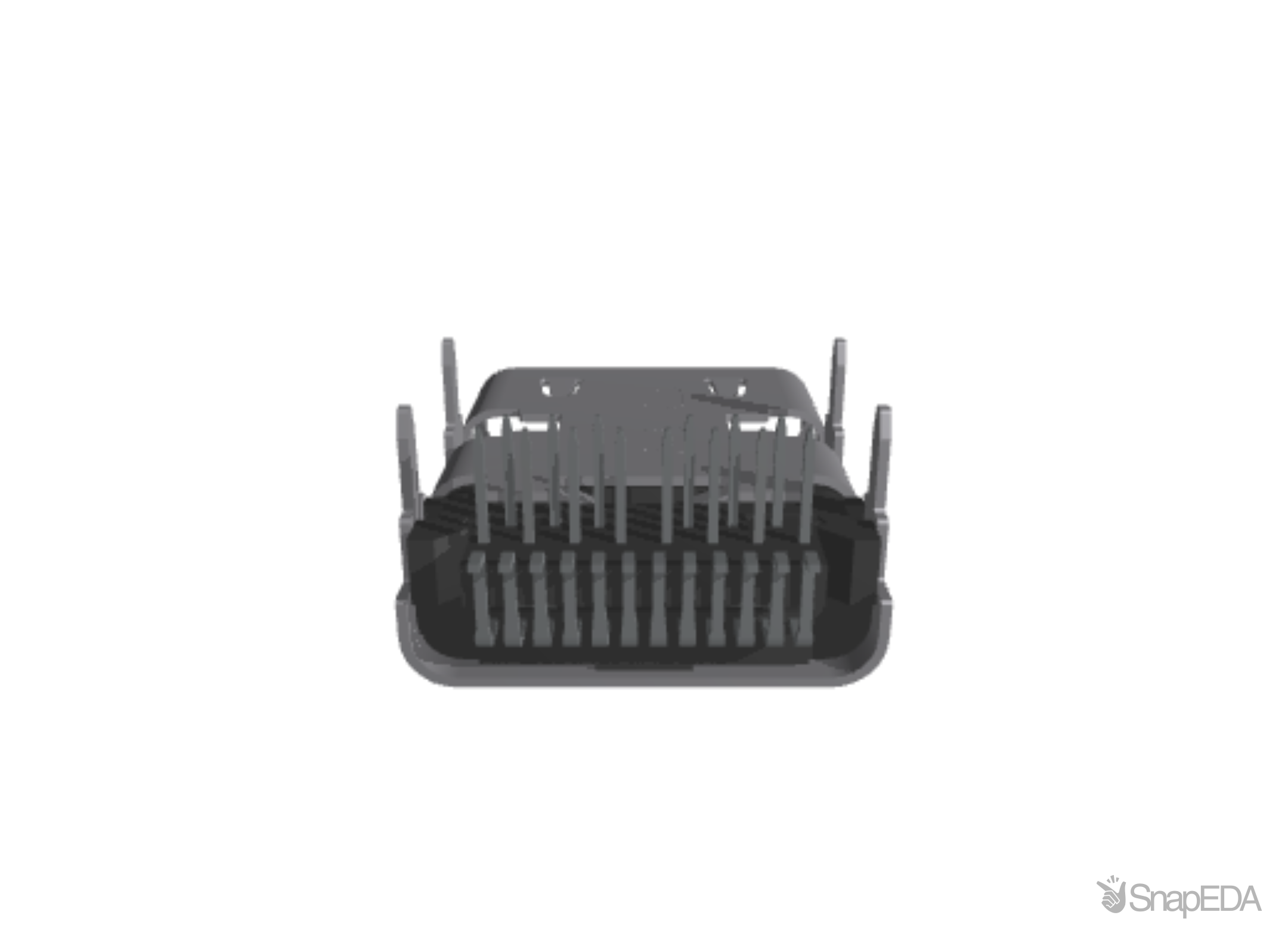

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 632723100011

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 632723100011

Part Name	632723100011
Manufacturer	Wurth Electronics
Product Series Size	USB 3.1 Type C Receptacle Horizontal THT / SMT WR-USB31
Contact Resistance	0.03
Article Description Long	Type C Horizontal THR/SMT - PCB Thickness 1.0mm
Rated Current (A)	5
Product Unit	eiCan
Current Revision (A)	2.0.0
Reach Approval	(EC)1907/2006
Width	{'is_url': False, 'value': u''}
Division	Electromechanics
Product Family	Input/Output Connectors
Length	{'is_url': False, 'value': u''}
Withstanding Voltage (V)	100
Product Group Description	Connectors
RoHS	True
Life Cycle Status	Active
Weight	0.9558
Ro Hs Approval	Compliant
Spq	700
Packaging Type	13" Plastic Reel
Height	{'is_url': False, 'value': u''}
Working Voltage (V)	20
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the 632723100011 by Wurth Electronics.
