63306-2
0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 63306-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

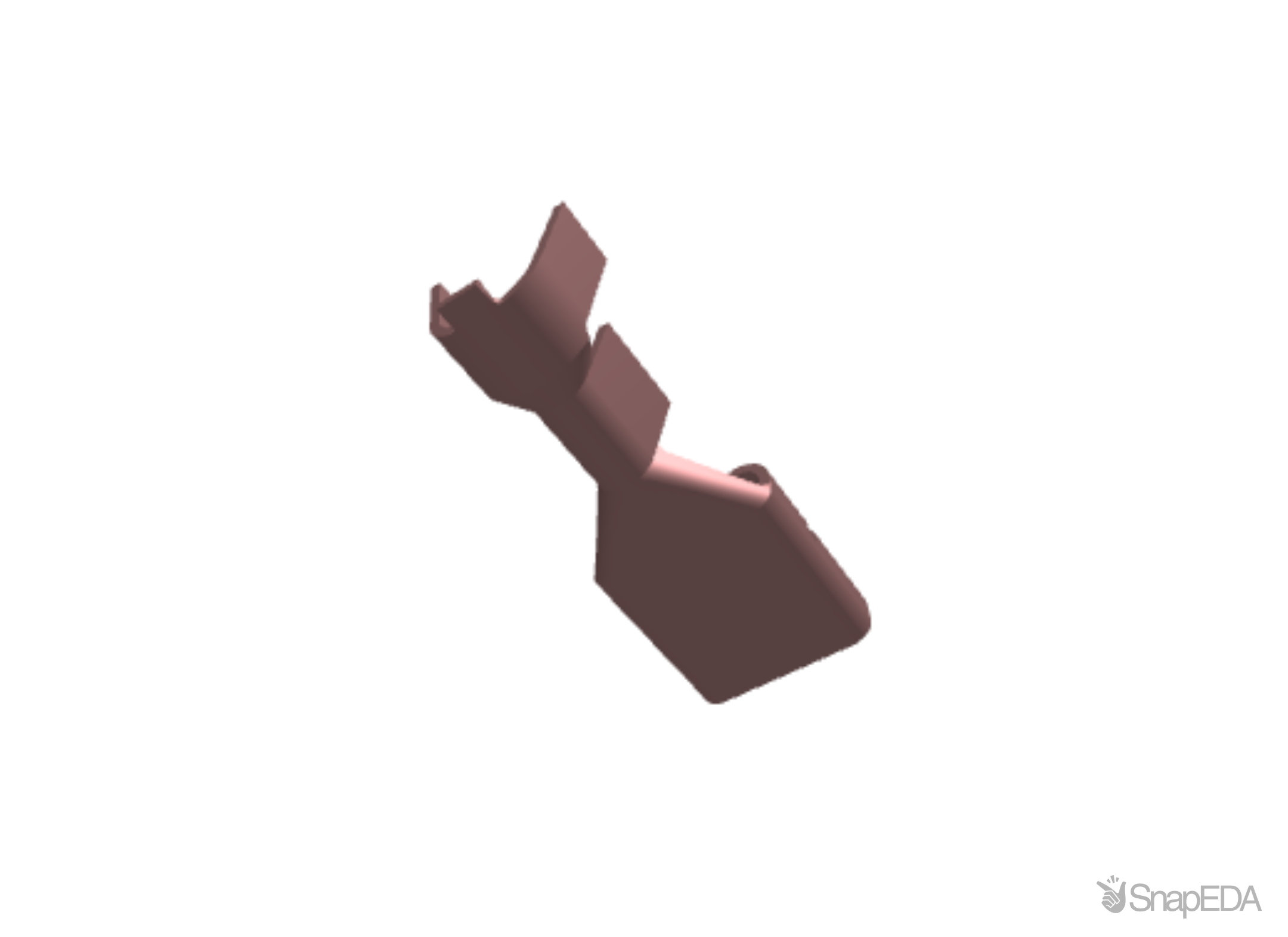

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 63306-2
| Part Name | 63306-2 |
| Manufacturer | TE Connectivity |
| Fully Insulated | No |
| Wire/Cable Type | Regular Wire |
| Insulated | No |
| Wire Stop | No |
| Plating Material | Tin |
| Receptacle Terminal Stock Thickness | .41 |
| Connection Capacity | Single |
| TE Internal Number | 63306-2 |
| UL Rating | Listed |
| Overall Length | .755 |
| Line | Budget |
| Contact Base Material | Brass |
| Terminal Type | Receptacle |
| Operating Temperature Range | -40 – 110 |
| Terminal & Splice Type | Receptacle |
| CSA Certified | Yes |
| Packaging Method | Strip/Reel |
| Packaging Quantity | 10000 |
| Terminal Orientation | Straight |
| Accepts Wire Insulation Diameter Range | .12 – .17 |
| Barrel Type | Open |
| Insertion Force | Low |
| RoHS | True |
| Mating Tab Width | .25 |
| Sealable | No |
| Wire Insulation Support | With |
| Mating Retention Type | Dimple |
| Crimp Type | F-Crimp |
| Mating Tab Thickness | .81 |
| Terminates To | Wire & Cable |
| Wire Size | .82 – 2.08 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
