6364372-1
SnapVerified
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6364372-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

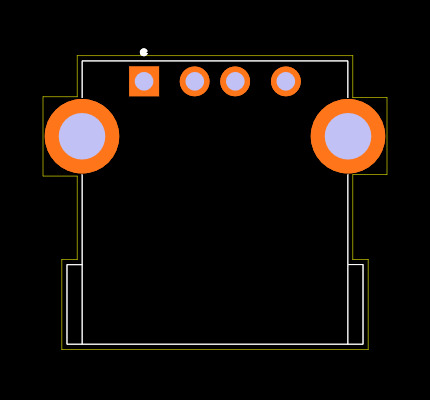

Footprint
No web preview
This Footprint is Available for

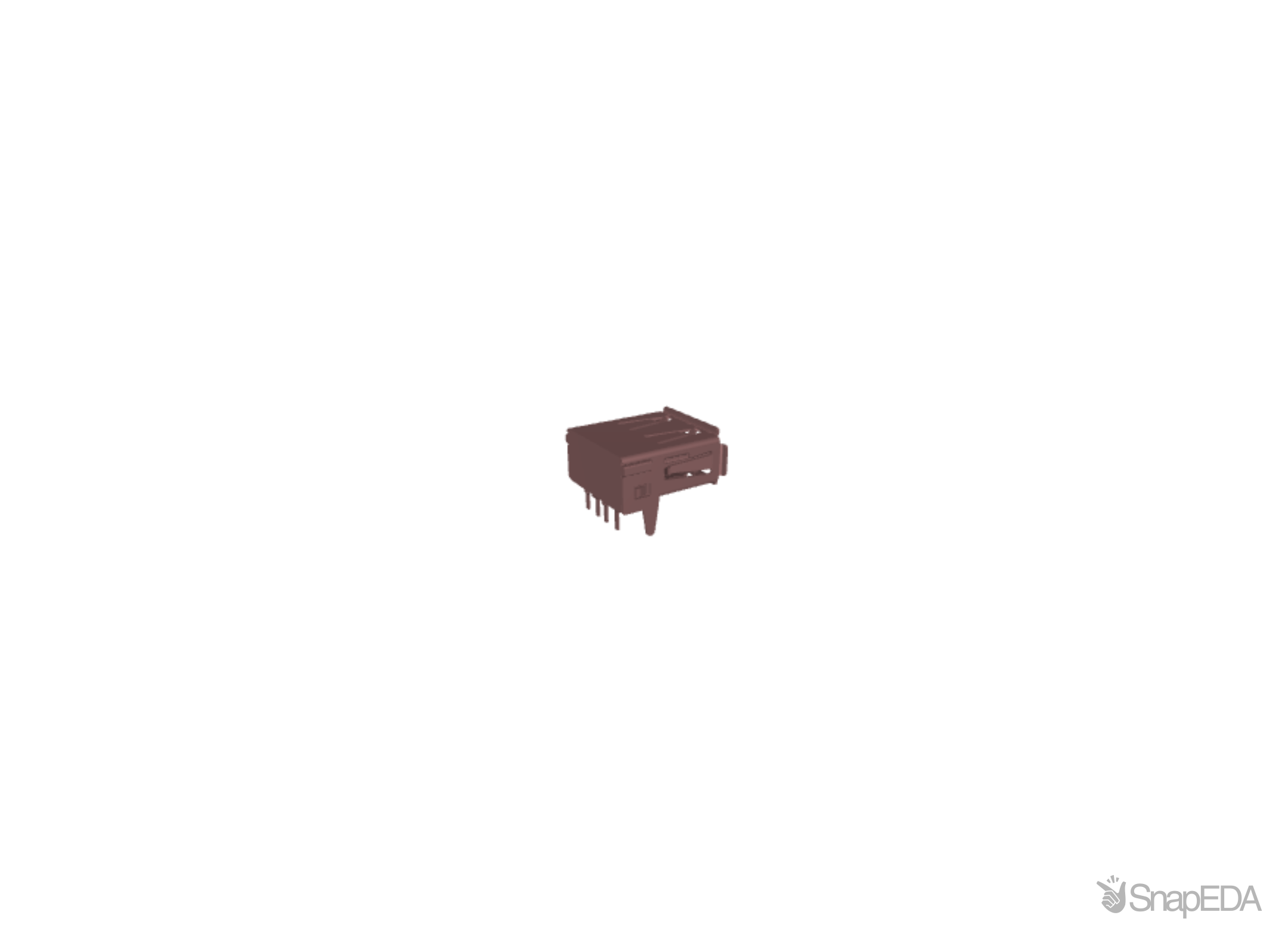

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6364372-1
| Part Name | 6364372-1 |
| Manufacturer | TE Connectivity |
| Pick & Place Capable | Yes |
| Shell Plating Material | Tin |
| Centerline (Pitch) | .078 |
| USB Version | 2.0 |
| Circuit Application | Power & Signal |
| USB Type | A |
| Soldering Temperature (Max) | 464 |
| Housing Material | Thermoplastic |
| Contact Termination Type | Through Hole |
| PCB Connector Seating | Flush |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Straight Leg |
| Locking Feature | With |
| PCB Thickness (Recommended) | 1.57 |
| Mounting Location | Top |
| Number of Mounting Legs | 2 |
| Number of Positions | 4 |
| Connector System | Cable-to-Board |
| TE Internal Number | 6364372-1 |
| Mating Cycles (Max) | 1500 |
| Housing Color | Black |
| Termination Method | Solder |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Moisture Sensitivity Level | 1 |
| Industry Standard | USB 2.0 |
| Operating Temperature Range | -55 – 85 |
| Shell Plating Finish | Bright |
| Packaging Method | Box |
| Locating Posts | Without |
| Tail Length | 2.84 |
| Packaging Quantity | 1920 |
| Number of Ports | 1 |
| Halogen Free | No |
| Contact Mating Area Plating Material | Gold or Gold Flash over Palladium Nickel |
| Panel Mount Feature Type | Flange |
| RoHS | True |
| Termination Method to Printed Circuit Board | Wave Solder |
| LED | Without |
| Orientation | Right Angle |
| UL Flammability Rating | UL 94V-0 |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | 29.92 |
| Size | Standard |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
