6364666-1
Conn Card Edge SKT 62 POS 2.54mm Solder ST Thru-Hole Box
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6364666-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

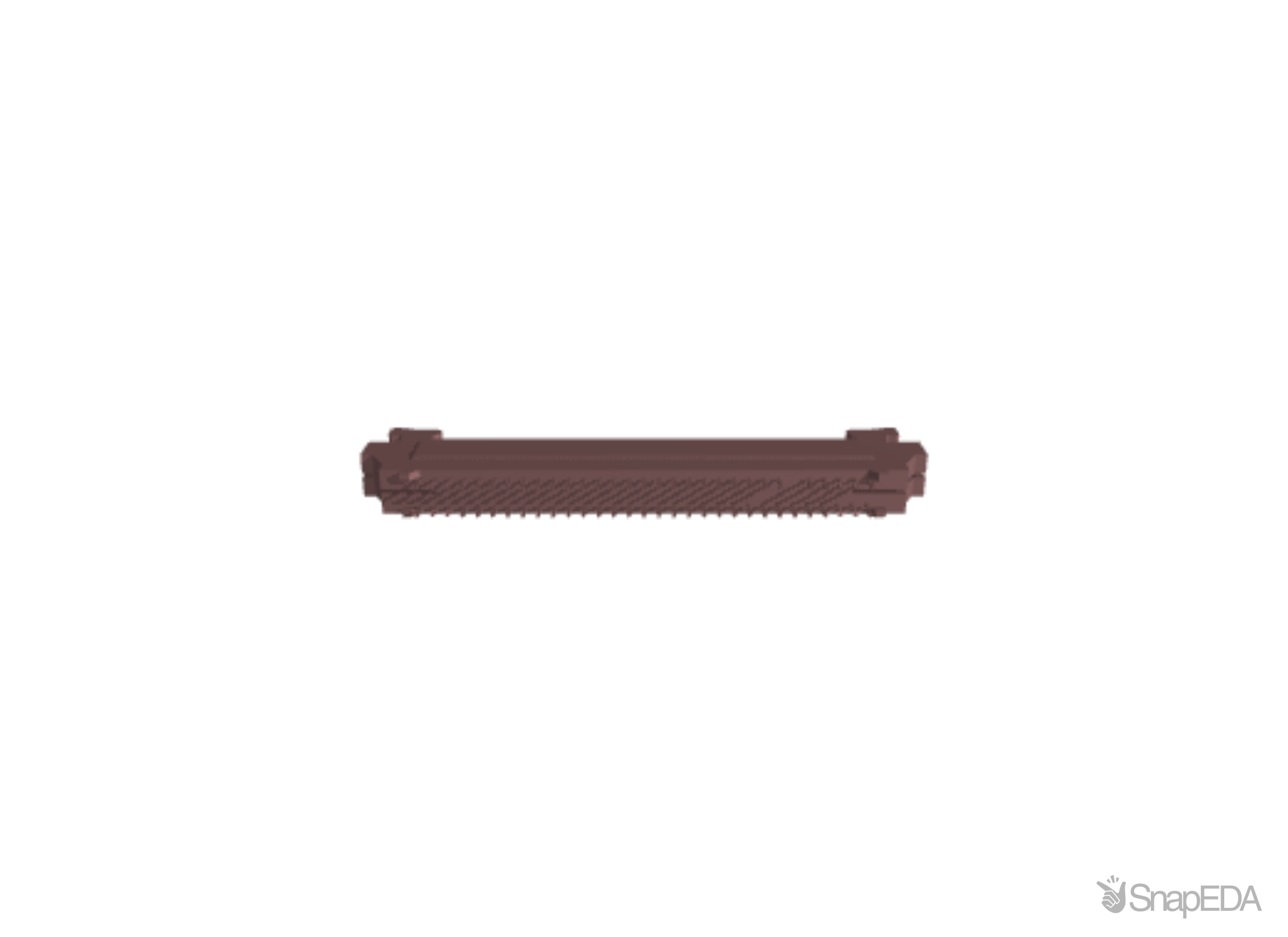

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6364666-1
| Part Name | 6364666-1 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Power & Signal |
| Contact Termination Area Plating Finish | Matte |
| Mating Retention Type | Latch |
| Housing Material | Polyester GF |
| Row-to-Row Spacing | 4.85 |
| Number of Power Positions | 62 |
| Operating Voltage (V) | 400 |
| For Use With | Printed Circuit Board |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Action/Compliant Tail |
| PCB Mount Retention | With |
| Termination Post & Tail Length | 3.18 |
| Anzahl der Einzelpositionen | 0 |
| TE Internal Number | 6364666-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 2 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Number of Dual Positions | 31 |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -67 – 194 |
| Packaging Method | Box |
| Housing Type | Receptacle |
| Card Slot Depth | 7.62 |
| Keying & Polarized Position Locations | 11, 12 |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 62 |
| Packaging Quantity | 5 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| Contact Retention | Without |
| PCB Retention Location | 2, 3, 29, 30, 33, 34, 60, 61 |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | 15.62 |
| Power Contact Centerline | 2.54 |
| Contact Current Rating (Max) (A) | 4.26 |
| Contact Mating Area Plating Thickness | 30 |
| End Caps | Without |
| Contact Type | Socket |
| Contact Termination Area Plating Thickness | 2.54 |
| Position Locations Omitted | 6 |
| Mating Alignment | With |
