63675-4
Tab Terminal 30-38AWG M 13.72mm 3.78mm Electro-Tin Strip on Reel
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 63675-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

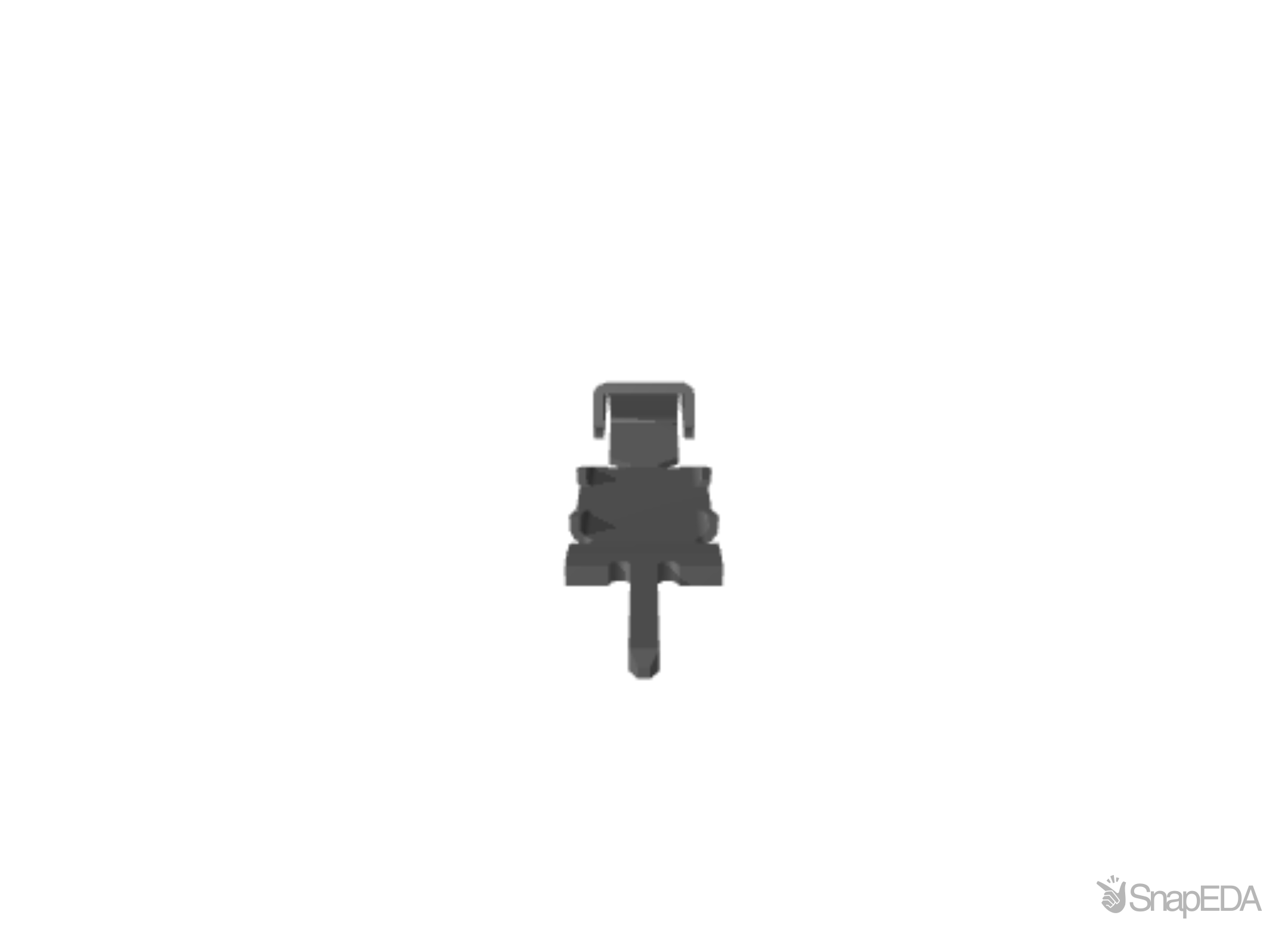

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 63675-4
| Part Name | 63675-4 |
| Manufacturer | TE Connectivity |
| Material Thickness | .51 |
| Terminal & Splice Type | Tab |
| Magnet Wire Size | 38 – 30 |
| Packaging Method | Reel/Carton |
| TE Internal Number | 63675-4 |
| Terminal Height | 13.72 |
| Terminal Type | Tab |
| Plating Material | Tin |
| Terminal Orientation | Twisted |
| Wire/Cable Type | Magnet Wire |
| Mating Tab Thickness | .6 |
| Overall Length | 13.72 |
| Sealable | No |
| Stock Thickness (Magnet Wire Side) | .25 |
| RoHS | True |
| Mating Tab Width | .51 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
