640387-7
SnapVerified
Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Package
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 640387-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

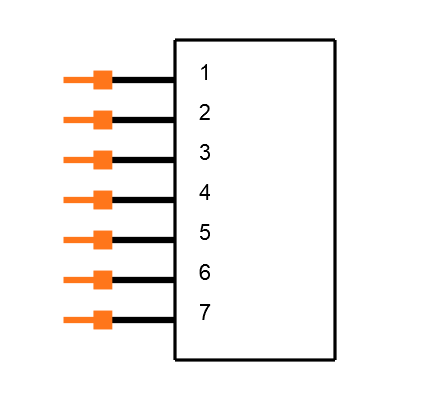

Symbol
No web preview
This Symbol is Available for

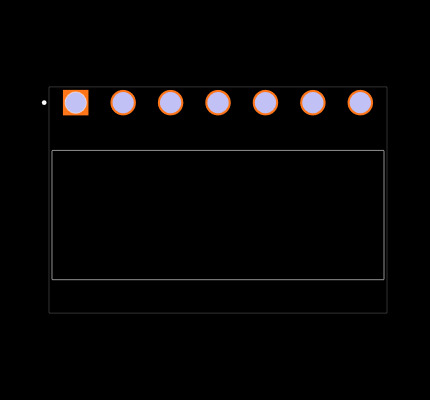

Footprint
No web preview
This Footprint is Available for

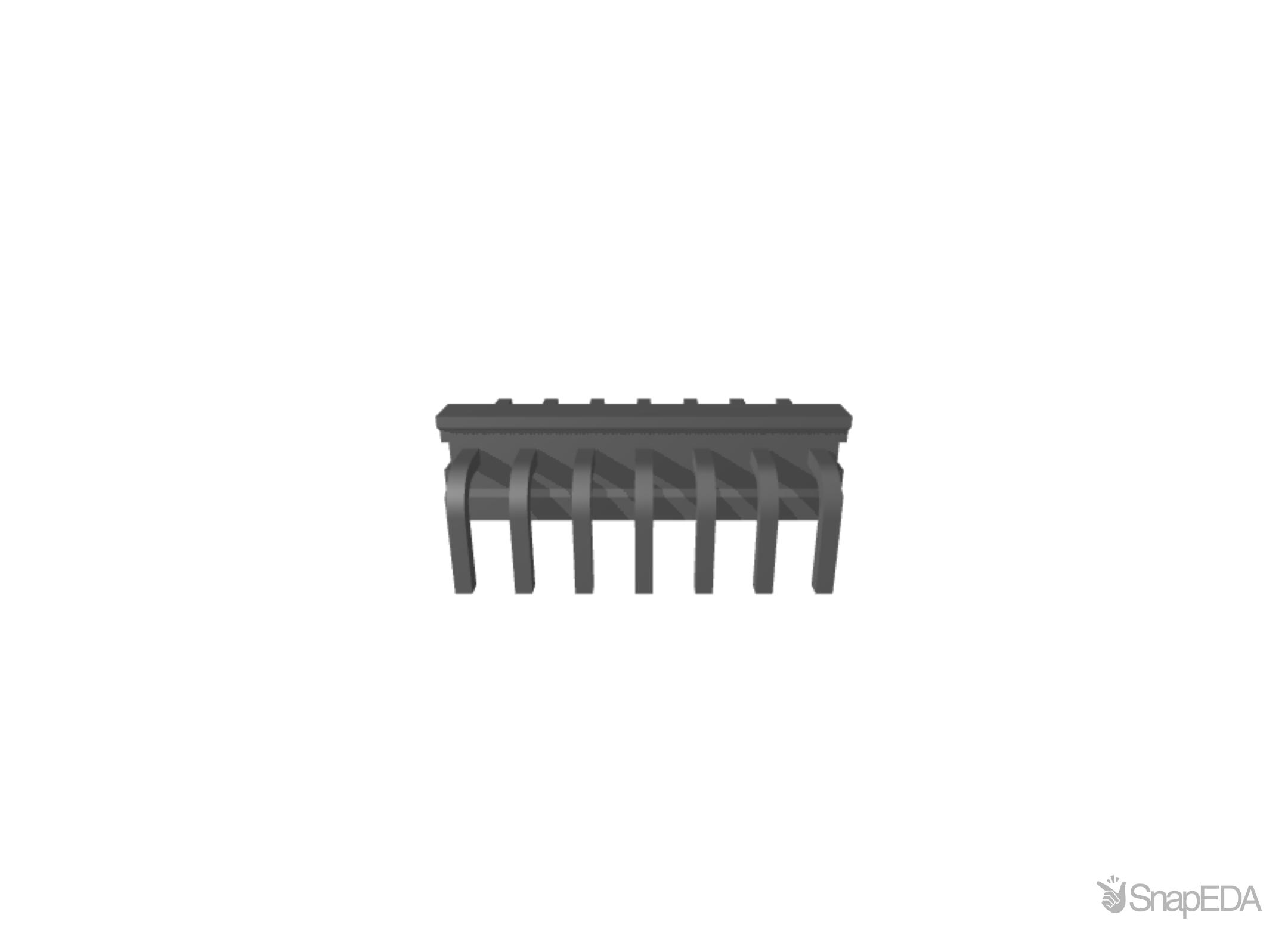

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 640387-7
| Part Name | 640387-7 |
| Manufacturer | TE Connectivity |
| Contact Termination Area Plating Material | Tin |
| Centerline (Pitch) | .156 |
| Circuit Application | Power |
| Mating Retention Type | Friction Lock |
| Housing Material | Polyester - GF |
| Contact Termination Area Plating Thickness | 150 – 250 |
| Number of Power Positions | 7 |
| Operating Voltage (V) | 600 |
| For Use With | MTA .156 Connector Assembly or SL .156 Connector Assembly |
| UL Rating | Recognized |
| Number of Positions | 7 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | .14 |
| Contact Current Rating (Max) (A) | 7 |
| Mating Post Length | 10.16 |
| TE Internal Number | 640387-7 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Header Type | Unshrouded |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Mating Area Plating Thickness | 100 |
| Operating Temperature Range | -67 – 221 |
| Contact Layout | Inline |
| Strain Relief | Without |
| Packaging Method | Package |
| Housing Type | Plug |
| Packaging Quantity | 1000 |
| Agency/Standard | CSA |
| Connector & Contact Terminates To | Printed Circuit Board |
| Length | 1.092 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Tin |
| CSA Rating | Certified |
| Right Angle Bending Side | Rear |
| RoHS | True |
| Mating Retention | With |
| 端子の下地めっきの材料 | Nickel |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | 10.79 |
| Panel Mount Feature | Without |
| CSA File Number | LR7189 |
| Contact Retention | Without |
| Product Type | Header |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
