640506-1
36P MR HDR ASSY V0 RED
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 640506-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

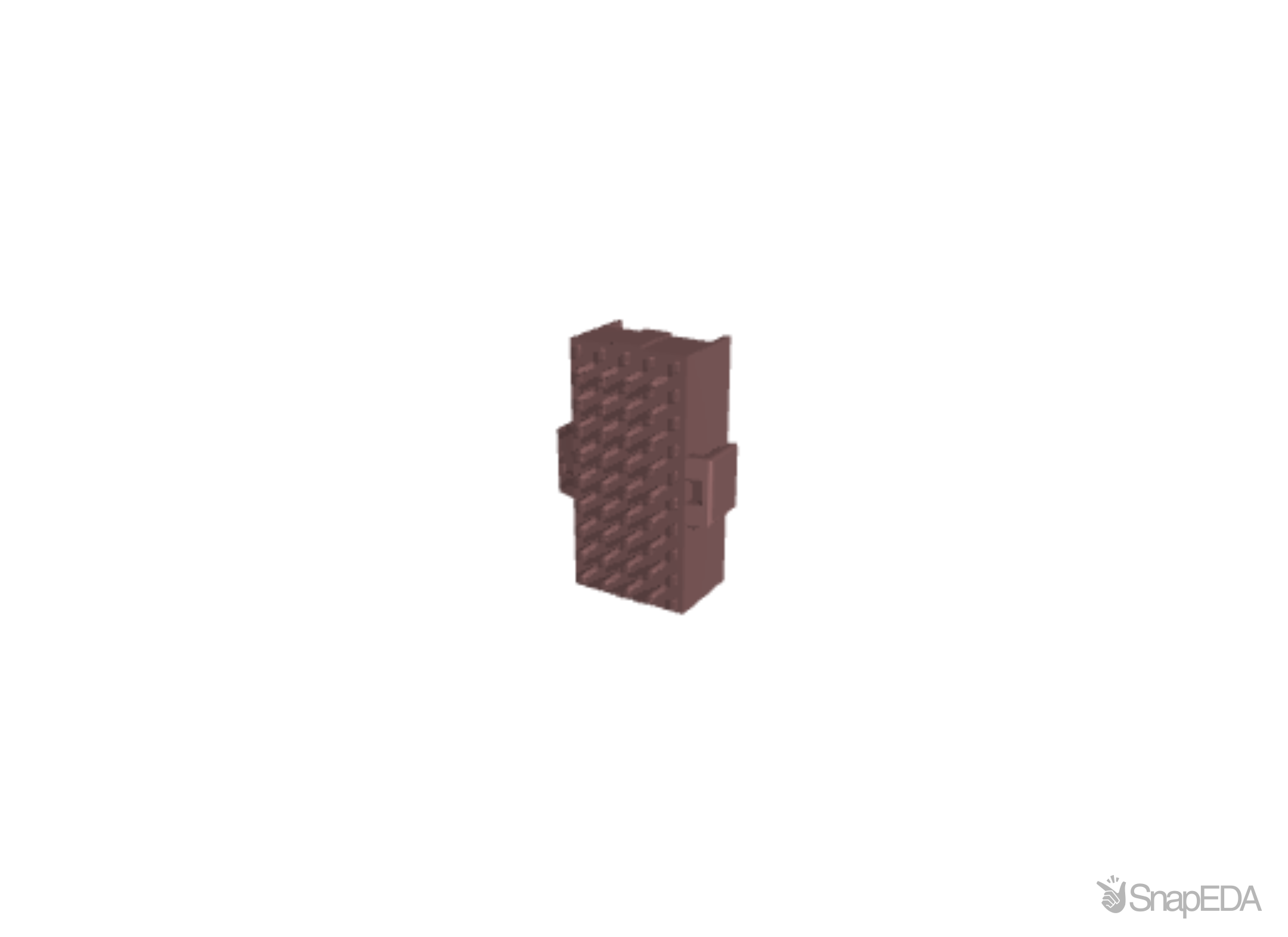

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 640506-1
| Part Name | 640506-1 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 4.2 |
| Circuit Application | Power & Signal |
| UL Flammability Rating | UL 94V-0 |
| Mating Retention | With |
| Width | .785 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| For Use With | Printed Circuit Board |
| PCB Mount Orientation | Vertical |
| Number of Positions | 36 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .063 |
| Insulation Diameter (Max) | .115 |
| Termination Post & Tail Length | .145 |
| Contact Current Rating (Max) (A) | 9 |
| TE Internal Number | 640506-1 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Housing Type | Receptacle |
| Agency/Standard Number | E28476 |
| Housing Color | Red |
| Header Type | Shrouded |
| Sealable | No |
| Number of Columns | 4 |
| Contact Layout | Inline |
| Number of Rows | 9 |
| Packaging Method | Bag |
| Packaging Quantity | 50 |
| Agency/Standard | UL |
| Contact Termination Area Plating Material | Pre-Tin |
| Length | 1.1609 |
| Mating Alignment | With |
| RoHS | True |
| Housing Material | Nylon GF |
| Product Type | Header |
| PCB Mount Alignment | Without |
| Mating Retention Type | Positive Lock |
| Height | .53 |
| Row-to-Row Spacing | .165 |
| CSA File Number | LR7189 |
| Contact Type | Pin |
| Wire Size | 26 – 18 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
