641737-1
SnapVerified
HEADER ASSEMBLY, SOFT SHELL, MATE-N-LOK, 4 POSITION, PIN, NYLON, NATURAL | TE Connectivity 641737-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 641737-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

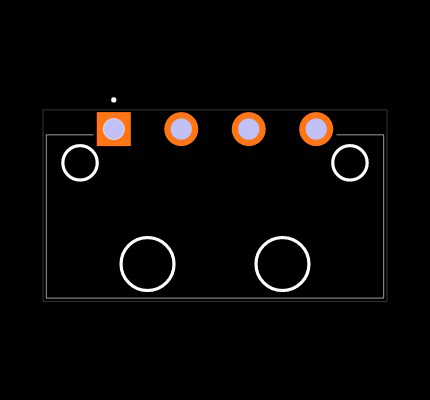

Footprint
No web preview
This Footprint is Available for

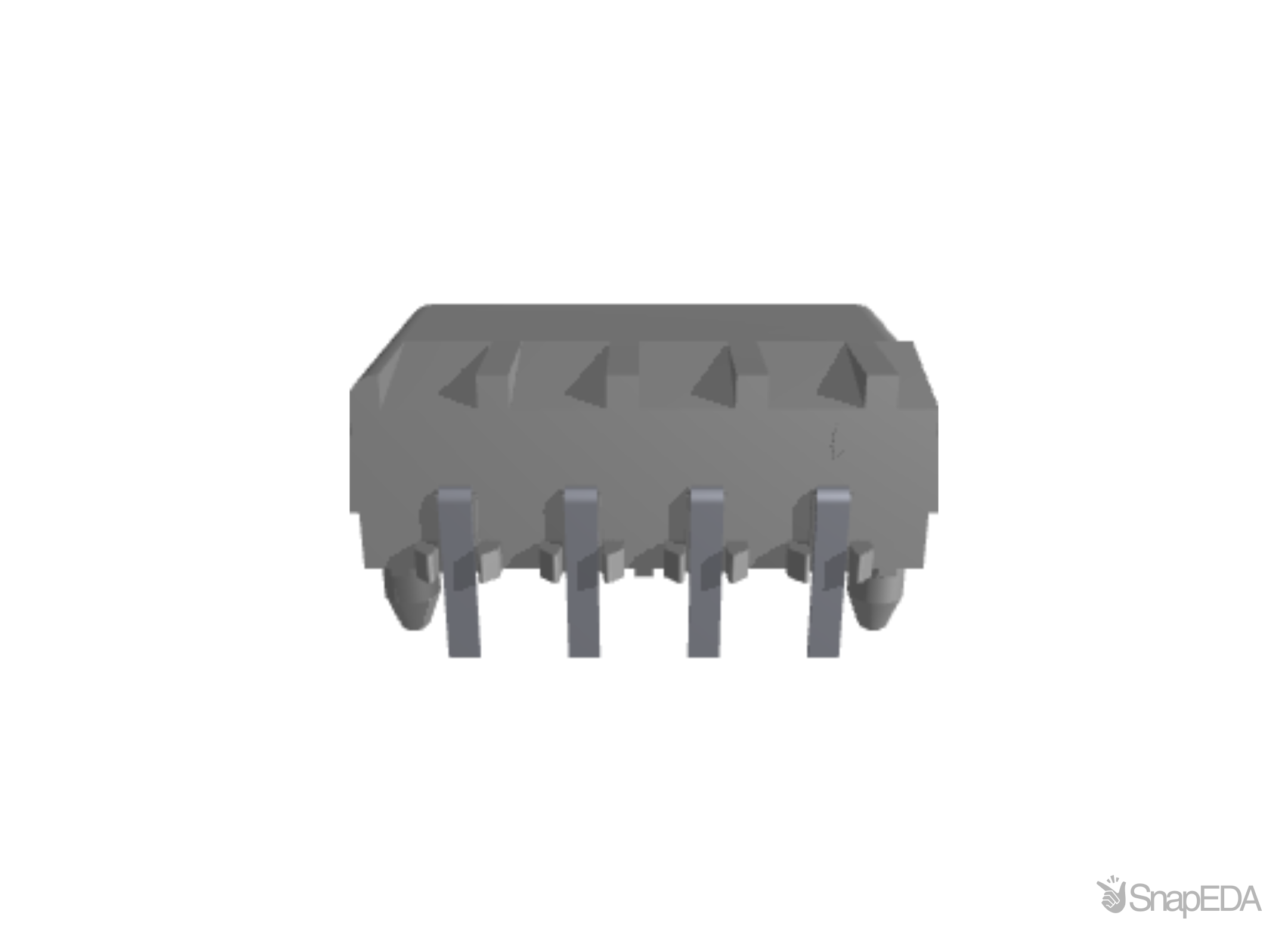

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 641737-1
| Part Name | 641737-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 5.08 |
| Circuit Application | Power |
| UL Flammability Rating | UL 94V-2 |
| Housing Material | Nylon |
| Width | .484 |
| Number of Power Positions | 4 |
| Operating Voltage (V) | 250 |
| For Use With | Socket Housing |
| PCB Mount Alignment Type | Locating Posts |
| Number of Positions | 4 |
| PCB Mount Retention | Without |
| PCB マウント アラインメント タイプ | Locating Posts |
| PCB Thickness (Recommended) | .061 |
| Termination Post & Tail Length | .14 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 641737-1 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Natural |
| Header Type | Shrouded |
| Strain Relief | Without |
| Connector Mounting Type | Board Mount |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Mating Area Plating Thickness | 3.81 – 5.08 |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Bag |
| Housing Type | Plug |
| Packaging Quantity | 100 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Pre-Tin |
| Length | 23.26 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Pre-Tin |
| RoHS | True |
| Mating Retention | With |
| Contact Base Material | Phosphor Bronze |
| PCB Mount Alignment | With |
| Mating Retention Type | Latch |
| Height | .345 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 12 |
| Contact Retention | Without |
| Product Type | Header |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 13.0 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | Commercial MATE-N-LOK |
| Body Orientation | Right Angle |
| Pitch | 5.08 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 4 |
| Contact Material | Phosphor Bronze |
