641972-1

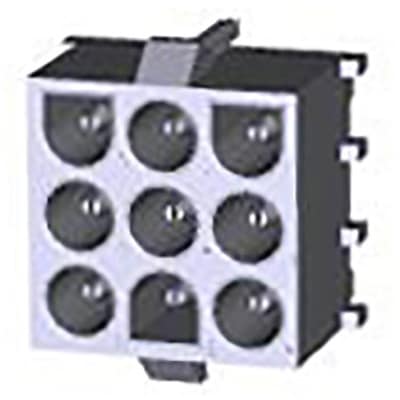

Universal MATE-N-LOK Series, 6.35mm Pitch 9 Way 3 Row Straight PCB Header | TE Connectivity 641972-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 641972-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 641972-1
| Part Name | 641972-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 6.35 |
| Circuit Application | Power |
| Mating Retention Type | Positive Lock |
| Housing Material | Nylon |
| Width | 20.32 |
| Number of Power Positions | 9 |
| Operating Voltage (V) | 600 |
| For Use With | Mates with Plug Housing (Using Socket Contacts) |
| PCB Mount Alignment Type | Standard Polarized Tail |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 9 |
| PCB Mount Retention | Without |
| VDE Tested | Yes |
| Termination Post & Tail Length | 3.7 |
| Contact Current Rating (Max) (A) | 12 |
| Panel Mount Feature | Without |
| TE Internal Number | 641972-1 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Number of Rows | 3 |
| Agency/Standard Number | E28476 |
| Housing Color | White |
| Number of Signal Positions | 0 |
| Product Type | Header |
| Multiple Contact Types | Without |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Mating Area Plating Thickness | 150 – 200 |
| Operating Temperature Range | -40 – 221 |
| Contact Layout | Matrix |
| Packaging Method | Bag |
| Housing Type | Receptacle |
| Packaging Quantity | 100 |
| Agency/Standard | UL |
| Contact Termination Area Plating Material | Tin |
| Length | 20.32 |
| Row-to-Row Spacing | 6.35 |
| Contact Mating Area Plating Material | Tin |
| CSA Rating | Certified |
| PCB Thickness (Recommended) | .125 |
| Mating Retention | With |
| Strain Relief | Without |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Height | 13.97 |
| PCB マウント アラインメント タイプ | Standard Polarized Tail |
| CSA File Number | LR7189 |
| Contact Retention | Without |
| Connector Mounting Type | Board Mount |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Sealable | No |
| Mating Alignment | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
