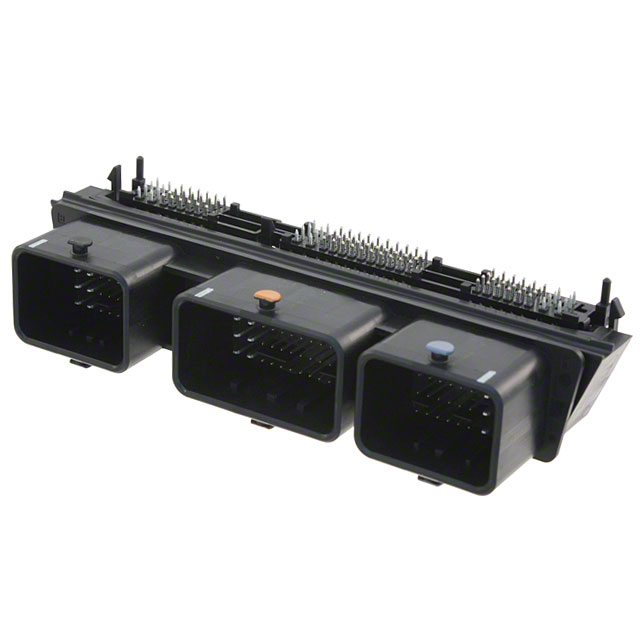

64333-0100
Connector Header Board Edge, Through Hole, Right Angle 112 (32 + 48 + 32) position -
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 64333-0100 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 64333-0100
| Part Name | 64333-0100 |
| Manufacturer | Molex |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 6 A, 12 A |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Cable Mount |
| Gender | Male |
| Colour | Black |
| Height | 35.3 (mm) |
| Housing Material | Nylon |
| Width | 143.63 (mm) |
| Depth | 49 (mm) |
| Number Of Rows | 4 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 112 |
| Type | CMC Header |
| Maximum Operating Temperature | +105 (°C) |
| Series Number | 64333 |
