646773-1
SnapVerified
200 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 646773-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

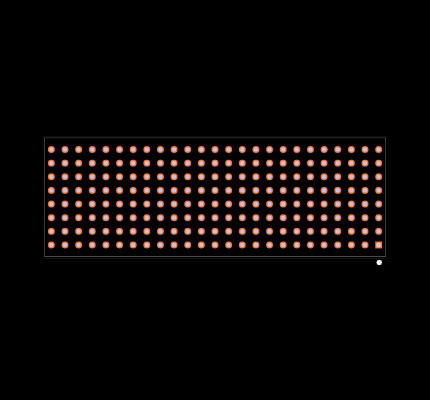

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 646773-1
| Part Name | 646773-1 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Multi-Purpose Center |
| Centerline (Pitch) | 2 |
| Circuit Application | Power & Signal |
| Housing Material | Polyester - GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Receptacle |
| Contact Mating Area Plating Material Thickness | .76 |
| Number of Positions | 200 |
| CompactPCI Designation | None |
| AdvancedTCA Specified Product | No |
| TE Internal Number | 646773-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 8 |
| Housing Color | Gray |
| Data Rate | ≤1 |
| Number of Signal Positions | 200 |
| Contact Base Material | Phosphor Bronze |
| Backplane Architecture | Mezzanine |
| Connector Mounting Type | Board Mount |
| Number of Columns | 25 |
| Feedthrough Post Length | 3.34 |
| Operating Temperature Range | -67 – 257 |
| Shielded | No |
| Packaging Method | Tube |
| Connector Type | Connector Assembly |
| Packaging Quantity | 10 |
| Contact Configuration | Signal |
| Module Length | 49.9 |
| Interface Type | 2mm HM |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Sealable | No |
| Rows Loaded | A |
| Crosstalk Version | Standard |
| UL Flammability Rating | UL 94V-0 |
| Termination End Plating Material | Tin-Lead over Nickel |
| Contact Current Rating (Max) (A) | 1.5 |
| Contact Type | Pin |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 646773-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
6,000 x $32.28
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Americas |
|
6,000 x $34.43
|
Visit Site | |
| Newark |
|
250 x $33.06
|
Visit Site | |
| RS Americas |
|
6,000 x $39.31
|
Visit Site | |
| Sager |
|
6,000 x $43.04
|
Visit Site |
No issues have been reported for the 646773-1
