6473418-1
SnapVerified
Superseal 1.0 26way receptacle connector | TE Connectivity 6473418-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6473418-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

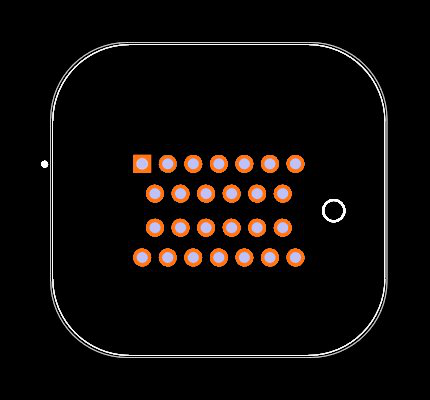

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6473418-1
| Part Name | 6473418-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 3 |
| UL Flammability Rating | UL 94V-0 |
| Width | 1.535 |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Operating Temperature (Max) | 248 |
| TE Internal Number | 6473418-1 |
| Number of Positions | 26 |
| Connector System | Wire-to-Device |
| Shielded | No |
| Number of Rows | 4 |
| RoHS | True |
| Locking Interface | With |
| Number of Signal Positions | 26 |
| Sealable | Yes |
| Number of Sections | 1 |
| Nominal Voltage Architecture (V) | 12 |
| Mounting Orientation | Vertical/180 |
| Operating Temperature Range | -40 to 257 |
| Degree of Protection | JIS D0203 |
| Mounting Holes | With |
| Termination Method | Through Hole - Solder |
| Length | 1.437 |
| Pin Diameter | .039 |
| Voltage Rating (Max) (V) | 250 |
| Color | Black |
| Hybrid Header | No |
| PCB Mount Alignment | With |
| Profile Height from PCB | .972 |
| Packaging Type | Tube |
| Panel Mount Feature | Without |
| Interface Plating | Gold (Au) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Through Hole |
| Gender | Male |
| Series | SUPERSEAL |
| Height | 27.9 (mm) |
| Housing Material | PET |
| Width | 45.5 (mm) |
| Depth | 36.5 (mm) |
| Number Of Rows | 4 |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Number Of Contacts | 26 |
| Type | Header |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Brass |
Inventory for the 6473418-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
117
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
17 x $15.00
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Onlinecomponents |
149
|
|
Visit Site | |
| RS UK |
29
|
|
Visit Site | |
| Sager |
|
357 x $16.33
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| Verical |
145
|
|
Visit Site |
No issues have been reported for the 6473418-1
