647676-9
SnapVerified
3.96 EP HDR ASSY 9P R/A
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 647676-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

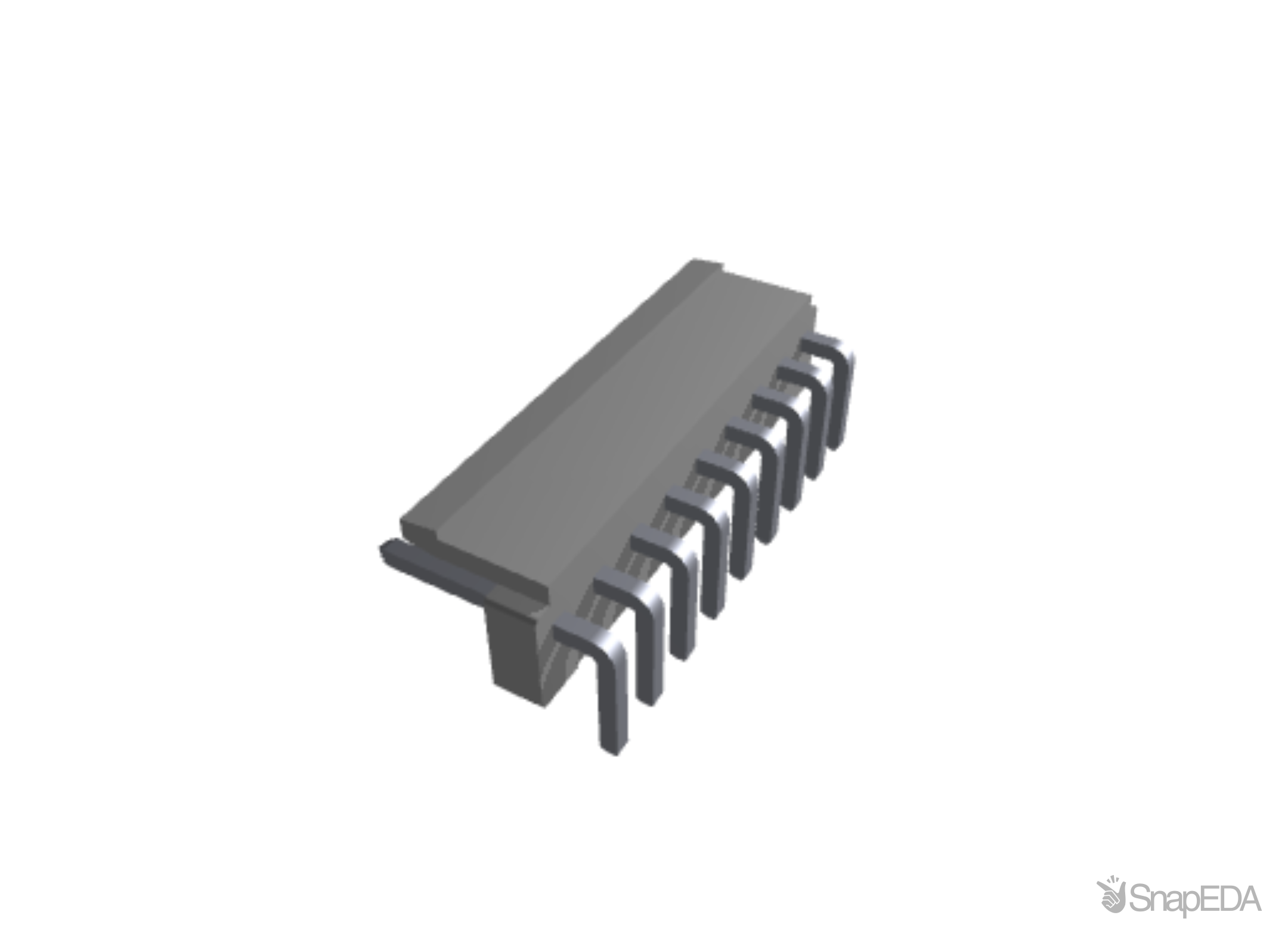

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 647676-9
| Part Name | 647676-9 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 3.96 |
| Circuit Application | Power |
| Mating Retention Type | Latch |
| Mating Retention | With |
| Width | .605 |
| Number of Power Positions | 9 |
| Operating Voltage (V) | 250 |
| For Use With | Plug Housing |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 9 |
| PCB Mount Retention | Without |
| Housing Material | Nylon 66 |
| Termination Post & Tail Length | .21 |
| Mating Post Length | 8.6 |
| TE Internal Number | 647676-9 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | White |
| Header Type | Unshrouded |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Contact Mating Area Plating Thickness | 80 |
| Operating Temperature Range | -25 – 105 |
| Packaging Method | Bag |
| Housing Type | Plug |
| Packaging Quantity | 500 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Length | 1.403 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Sealable | No |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | .37 |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Retention | Without |
| Product Type | Header |
| Connector Profile | Low |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 647676-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
2,000 x $0.65
|
Visit Site | |
|
★ Featured
|
1,957
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
1,000 x $0.72
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Sager |
|
2,000 x $0.55
|
Visit Site | |
|
★ Featured
|
|
2,000 x $0.34
|
Visit Site |
No issues have been reported for the 647676-9
