650133-000

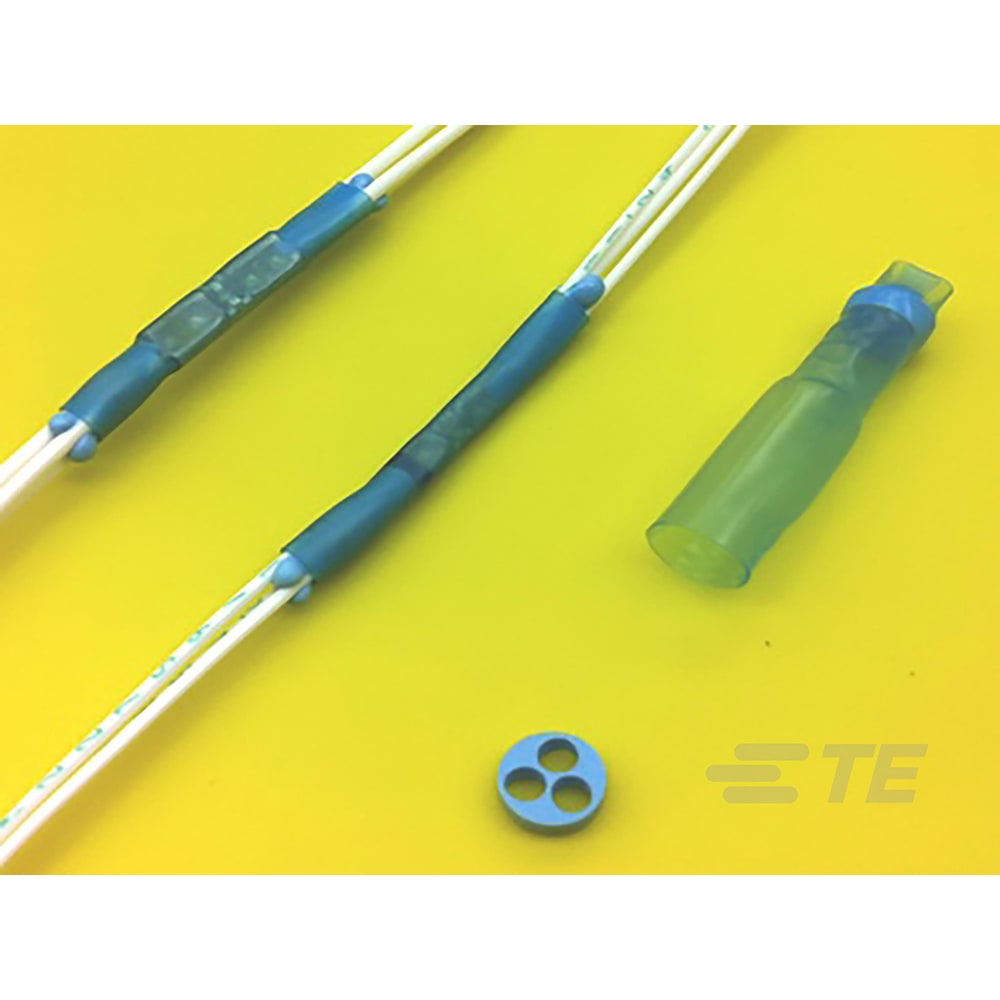

Crimp Terminal, D-436-89 | TE Connectivity 650133-000
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 650133-000 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 650133-000
| Part Name | 650133-000 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Serrated | No |
| Support Style | Non-Insulation Support |
| Wire/Cable Type | Insulated Wire |
| Insulated | Yes |
| Splice Type | In-Line Splice |
| Barrel Inside Diameter | .067 |
| TE Internal Number | 650133-000 |
| Overall Length | 1.35 |
| Product Type | Splice |
| Operating Temperature Range | -55 – 175 |
| Terminal & Splice Type | Splice |
| Packaging Method | Bag/Box |
| Splice Features | Splice Kit |
| Barrel Type | Closed Barrel |
| Splice Material | Nickel-Plated |
| RoHS | True |
| Number of Serrations | 0 |
| Sealable | Yes |
| Heavy Duty | No |
| Accessory Type | Splice |
| Government Qualified | Yes |
| Wire Size | .61 – 1.21 |
| Insulation Material | Modified Polyvinylidene |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 650133-000 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
500 x $11.83
|
Visit Site | |
| Verical |
899
|
1 x $11.12
|
Visit Site |
No issues have been reported for the 650133-000
If you experienced any issues with this part, please report it.
