650461-5
SnapVerified

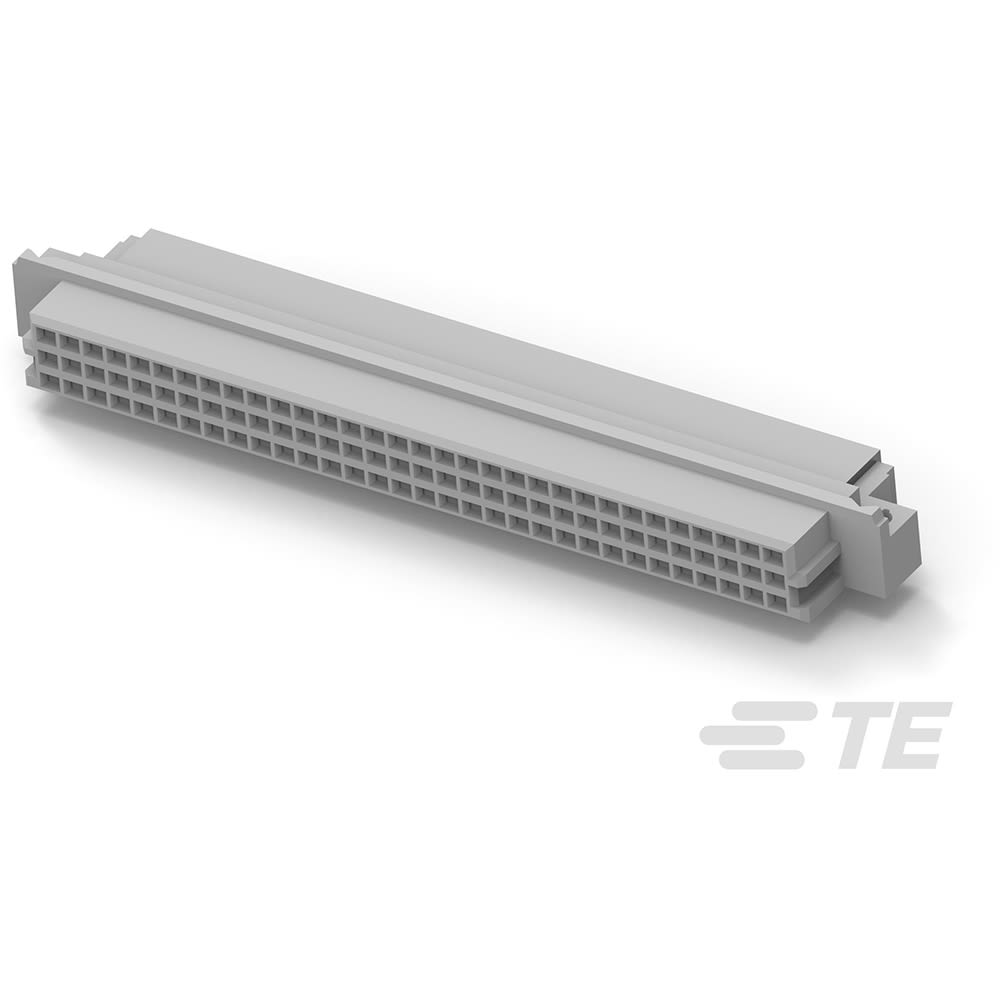

SOLIS SP SPD22-16COM22-18MIL1132 | TE Connectivity 650461-5
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 650461-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

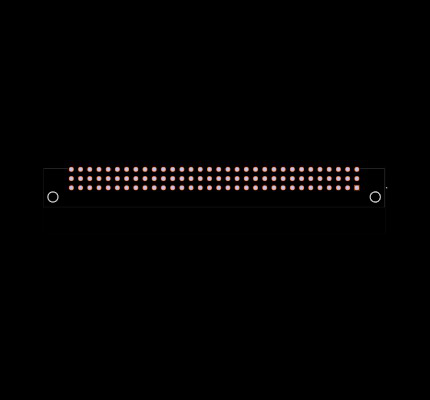

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 650461-5
| Part Name | 650461-5 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .1 |
| Circuit Application | Power & Signal |
| Housing Material | Polyester - GF |
| Post Type | Solder Post |
| Contact Termination Area Plating Thickness | 100 – 200 |
| Operating Voltage (V) | 250 |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | .11 |
| TE Internal Number | 650461-5 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Number of Rows | 3 |
| Number of Signal Positions | 96 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Number of Columns | 32 |
| Operating Temperature Range | -67 – 221 |
| Shielded | No |
| Make First / Break Last Contacts Loaded | No |
| Packaging Method | Box |
| Contact Termination Area Plating Material | Tin-Lead |
| Number of Positions | 96 |
| Interface Type | Eurocard/DIN 41612 |
| Contact Mating Area Plating Material | Tin-Lead |
| Make First / Break Last | No |
| RoHS | True |
| DIN Size | Standard |
| Mating Retention | With |
| Contact Base Material | Phosphor Bronze |
| Color | Gray |
| Rows Loaded | A |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 100 – 200 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 1.5 |
| DIN Level | II |
| Contact Cross Section | .3 x .61 |
| Contact Type | Socket |
| Number of Power or Coaxial Positions | 96 |
| Board-to-Board Configuration | Vertical |
| Guides | Without |
| Mating Alignment | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
