66023-2

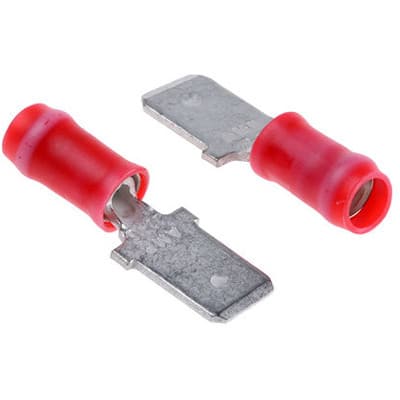

PIDG FASTON .250 Series,Redinsulated Crimp Tab Terminal,6.35x0.81mm,22 to 16 AWG | TE Connectivity 66023-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 66023-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 66023-2
| Part Name | 66023-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Fully Insulated | No |
| Wire/Cable Type | Regular Wire |
| Terminal Type | Tab |
| Crimp Type | Compression |
| Insulated | Yes |
| Wire Stop | No |
| Plating Material | Tin |
| TE Internal Number | 66023-2 |
| Overall Length | .91 |
| Contact Base Material | Copper Alloy |
| Barrel Color | Red |
| Operating Temperature Range | 105 |
| Terminal & Splice Type | Tab |
| Packaging Method | Carton |
| Packaging Quantity | 1000 |
| Terminal Orientation | Straight |
| Accepts Wire Insulation Diameter Range | .145 |
| Barrel Type | Closed |
| Mating Tab Width | 6.35 |
| Sealable | No |
| Wire Insulation Support | Without |
| Mating Tab Thickness | .81 |
| Terminates To | Wire & Cable |
| Wire Size | 22 – 16 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Minimum Wire Size Mm | 0.3 (mm²) |
| Maximum Wire Size Mm | 1.4 (mm²) |
| Series | PIDG FASTON .250 |
| Colour | Red |
| Termination Method | Crimp |
| Minimum Wire Size Awg | 22 (AWG) |
| Gender | Male |
| Tab Size | 6.35 x 0.81 (mm) |
| Contact Plating | Tin |
| Overall Length | 23.11 (mm) |
| Insulation | Insulated |
| Maximum Wire Size Awg | 16 (AWG) |
| Type | Tab |
| Insulation Material | PVC |
| Contact Material | Copper |
