66103-1

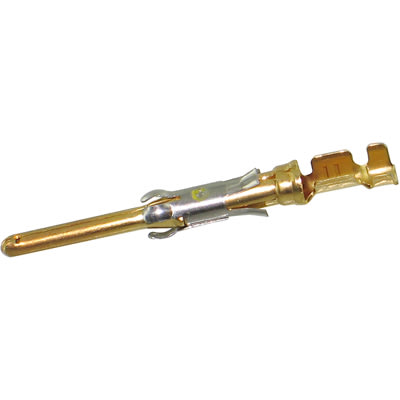

Connector PIN 20-24 AWG 30 Gold Crimp Multimate III Series | TE Connectivity 66103-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 66103-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 66103-1
| Part Name | 66103-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Underplate Material Thickness | 1.27 |
| Circuit Application | Power & Signal |
| Wire/Cable Type | Discrete Wire |
| For Use With | M Series Connectors |
| Connector & Contact Terminates To | Wire & Cable |
| Test Current (A) | 13 |
| TE Internal Number | 66103-1 |
| Contact Underplating Material | Nickel |
| Product Type | Contact |
| Wire Insulation Support | With |
| Contact Size | 16 |
| Operating Temperature Range | -55 – 150 |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Contact Base Material | Brass |
| Contact Termination Area Plating Material | Gold |
| Accepts Wire Insulation Diameter Range | 1.02 – 2.03 |
| Contact Mating Area Plating Material | Precious Metal |
| 端子の下地めっきの材料 | Nickel |
| Contact Current Rating (Max) (A) | 13 |
| Contact Mating Area Plating Thickness | 30 |
| Termination Type | Crimp |
| Mating Pin Diameter | 1.57 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 10 |
| Wire Size | 24 – 20 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | Type III+ |
| Minimum Wire Size (Mm²) | 0.2 (mm²) |
| Minimum Wire Size (Awg) | 24 (AWG) |
| Termination Method | Crimp |
| Maximum Wire Size (Mm²) | 0.6 (mm²) |
| Maximum Wire Size (Awg) | 20 (AWG) |
| Contact Plating | Gold |
| Gender | Male |
| For Use With | CPC, G Series and M Series Connector Housings |
| Contact Material | Brass |
