66200621022

Name: 66200621022
Brand: Würth Elektronik Midcom

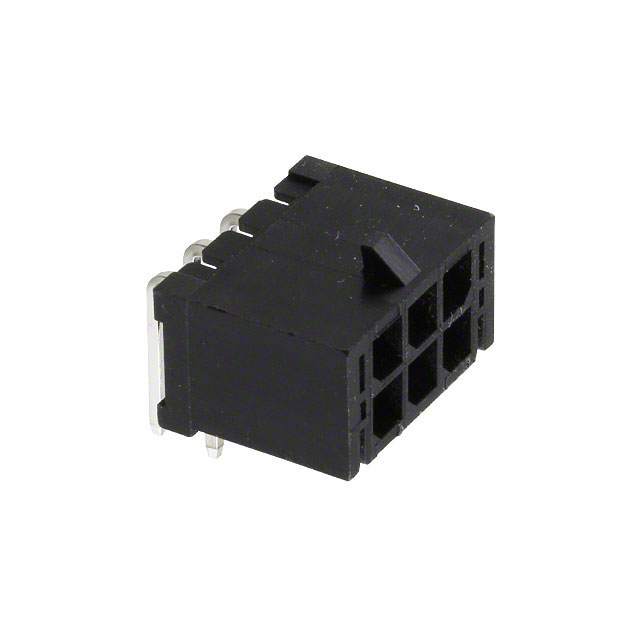

WR-MPC3; 3mm Pitch 6 Way 2 Row Shrouded Right Angle PCB Header, Through Hole | Wurth Electronics 66200621022

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 66200621022 by Würth Elektronik Midcom and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 66200621022

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 66200621022

Part Name	66200621022
Manufacturer	Würth Elektronik
Product Series Size	3.00 Male Dual Row Angled Header w. Plastic Pegs
Contact Resistance	0.01
Article Description Long	THT Dual Row Male Header Right Angled with Snap-in Plastic Pegs - Tin Plating - Glow-Wire, 06 Pins
Rated Current (A)	5
Product Unit	eiCan
Current Revision (A)	1.0.0
Reach Approval	Conform or declared
Width	{'is_url': False, 'value': u''}
Operating Temperature	-40 °C up to +105 °C
Division	Electromechanics
Product Family	Wire-to-Board Connectors
Category	Connectors
Length	12.7 mm
Withstanding Voltage (V)	1500
Product Group Description	Connectors
RoHS	True
Life Cycle Status	Active
Weight	1.07
Ro Hs Approval	2011/65/EU&2015/863
Spq	48
Packaging Type	Tube
Height	{'is_url': False, 'value': u''}
Working Voltage (V)	250
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the 66200621022 by Würth Elektronik Midcom.
