Design electronics in a snap

Download free symbols, footprints, and 3D models for millions of electronic components. Compatible with all major PCB tools.

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then Request Now

66201211122

Name: 66201211122
Brand: Wurth Elektronik

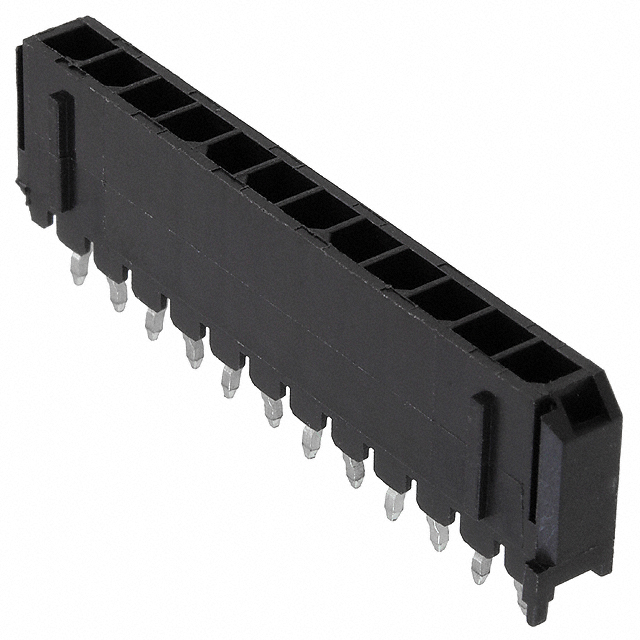

Connector Header Through Hole 12 position 0.118" (3.00mm)

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 66201211122 by Wurth Elektronik and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

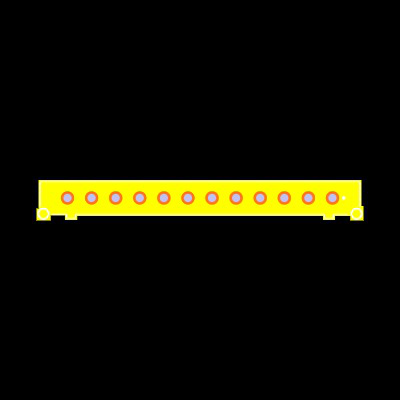

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 66201211122

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 66201211122

Part Name	66201211122
Manufacturer	Wurth Elektronik
Product Series Size	3.00 Male Single Row Vertical Header
Contact Resistance	0.01
Article Description Long	THT Single Row Male Header Vertical Classic (with Poka-Yoke) - Tin Plating - Glow-Wire, 12 Pins
Rated Current (A)	5
Product Unit	eiCan
Current Revision (A)	3.0.0
Reach Approval	Conform or declared
Width	{'is_url': False, 'value': u''}
Operating Temperature	-40 °C up to +105 °C
Division	Electromechanics
Product Family	Wire-to-Board Connectors
Length	39.65 mm
Withstanding Voltage (V)	1500
Product Group Description	Connectors
RoHS	True
Life Cycle Status	Active
Weight	1.7400000095
Ro Hs Approval	Compliant
Spq	15
Packaging Type	Tray
Height	{'is_url': False, 'value': u''}
Working Voltage (V)	250
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the 66201211122 by Wurth Elektronik.
