662103145021
Connector Header Surface Mount, Right Angle 3 position 0.118" (3.00mm)
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 662103145021 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

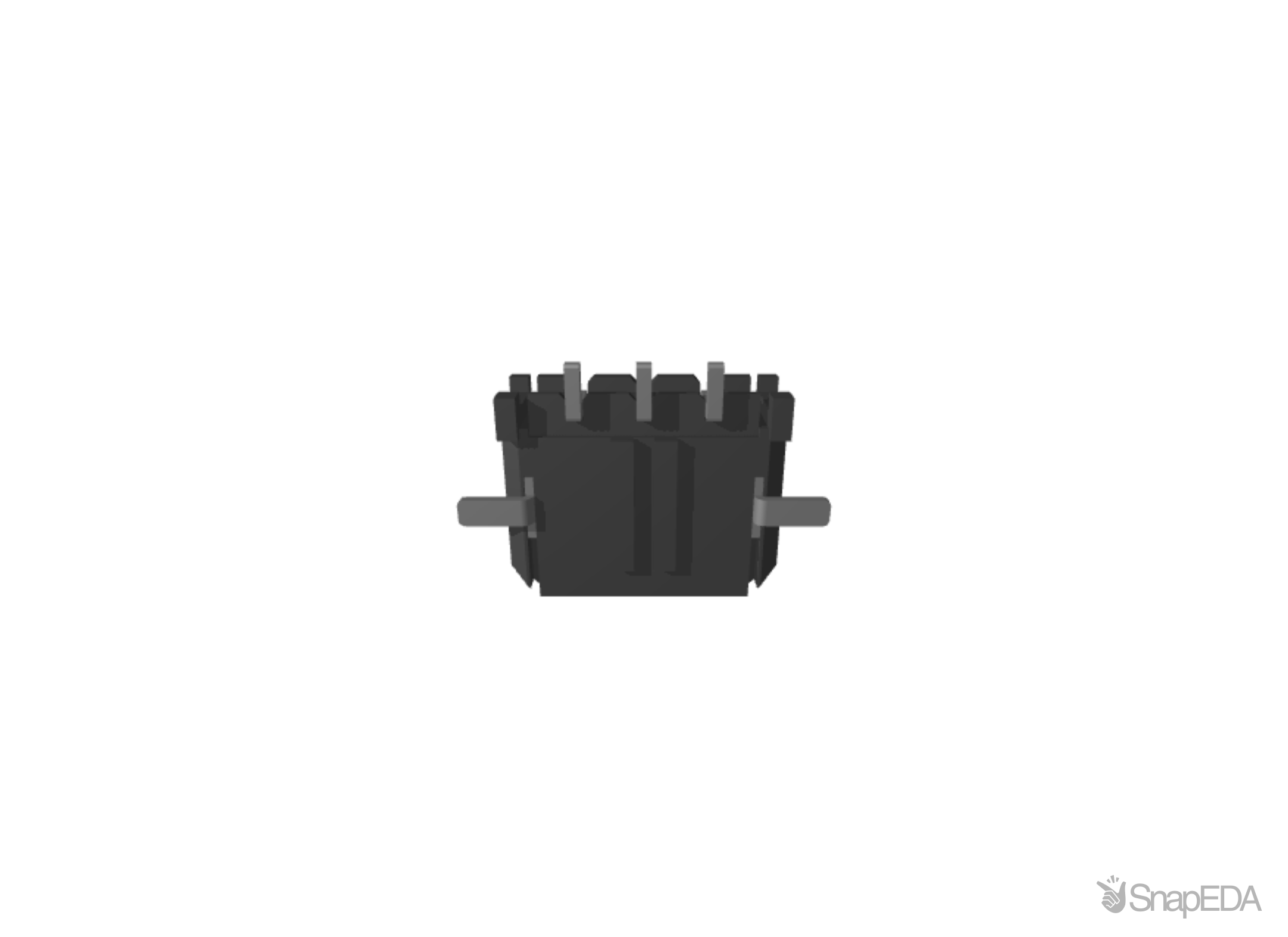

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 662103145021
| Part Name | 662103145021 |
| Manufacturer | Wurth Electronics |
| Product Series Size | 3.00 Male Single Row Angled Header |
| Division | Electromechanics |
| Article Description Long | SMT Single Row Male Header Right Angled with SMT Solder Tabs - Tin Plating - Glow-Wire, 03 Pins |
| Product Family | Wire-to-Board Connectors |
| Contact Resistance | 0.01 |
| Rated Current (A) | 5 |
| Spq | 400 |
| Current Revision (A) | 1.0.0 |
| Packaging Type | 13" Plastic Reel |
| Height | {'is_url': False, 'value': u''} |
| Width | {'is_url': False, 'value': u''} |
| Length | 12.65 mm |
| Working Voltage (V) | 250 |
| RoHS | True |
| Withstanding Voltage (V) | 1500 |
| Product Unit | eiCan |
| Operating Temperature | -40 °C up to +105 °C |
| Product Group Description | Connectors |
| Life Cycle Status | Active |
| Weight | 1.4175 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
