67068-8010
USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 67068-8010 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

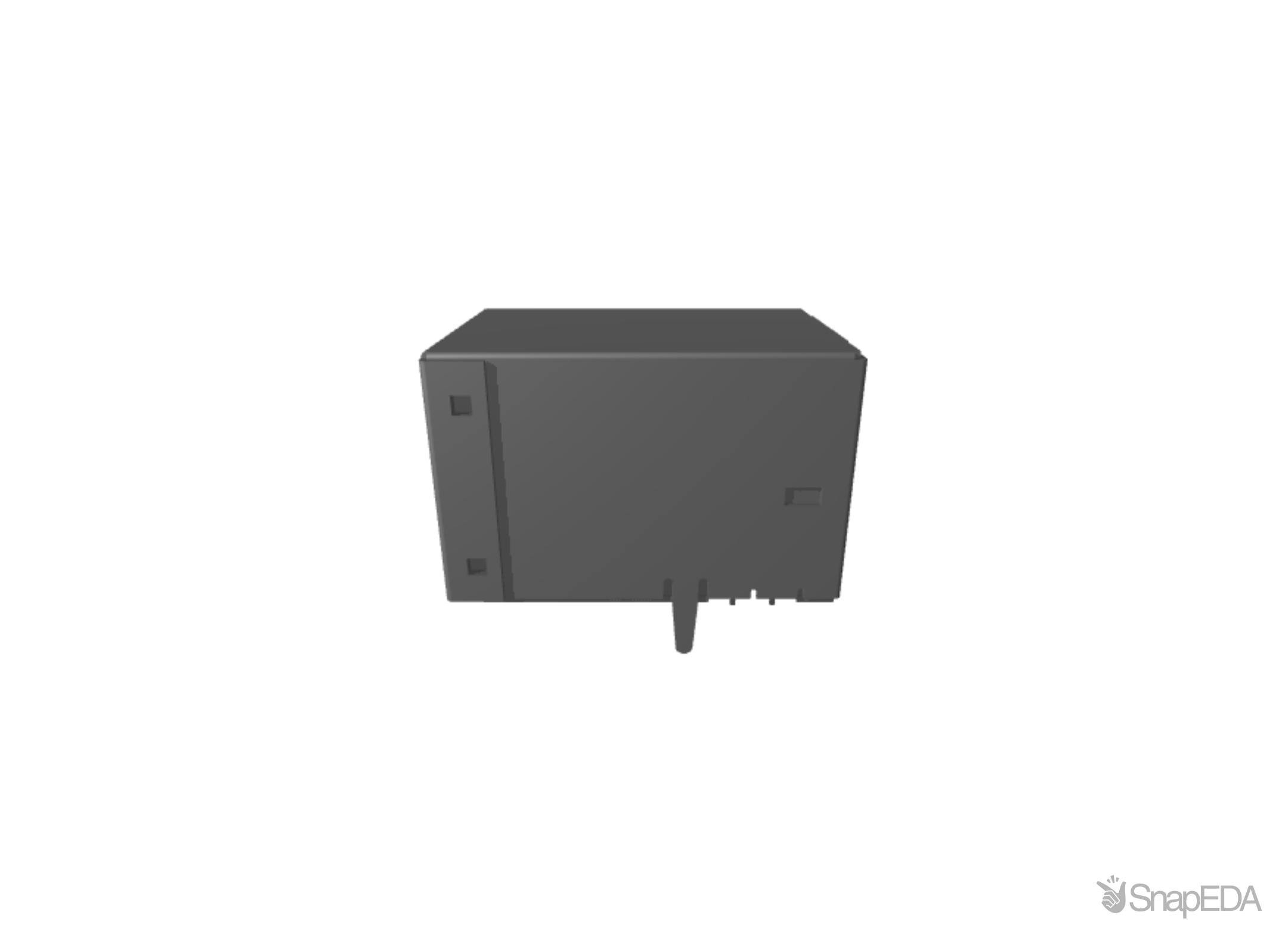

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 67068-8010
| Part Name | 67068-8010 |
| Manufacturer | Molex |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.5 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 30.0 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Number Of Ports | 1 |
| Minimum Operating Temperature | 0.0 (°C) |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Maximum Operating Temperature | +50 (°C) |
| Usb Type | B |
| Series Number | 67068 |
