67491-1030
SATA Series 7 Way 1 Row Straight PCB Socket Through Hole SATA | Molex Incorporated 67491-1030
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 67491-1030 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

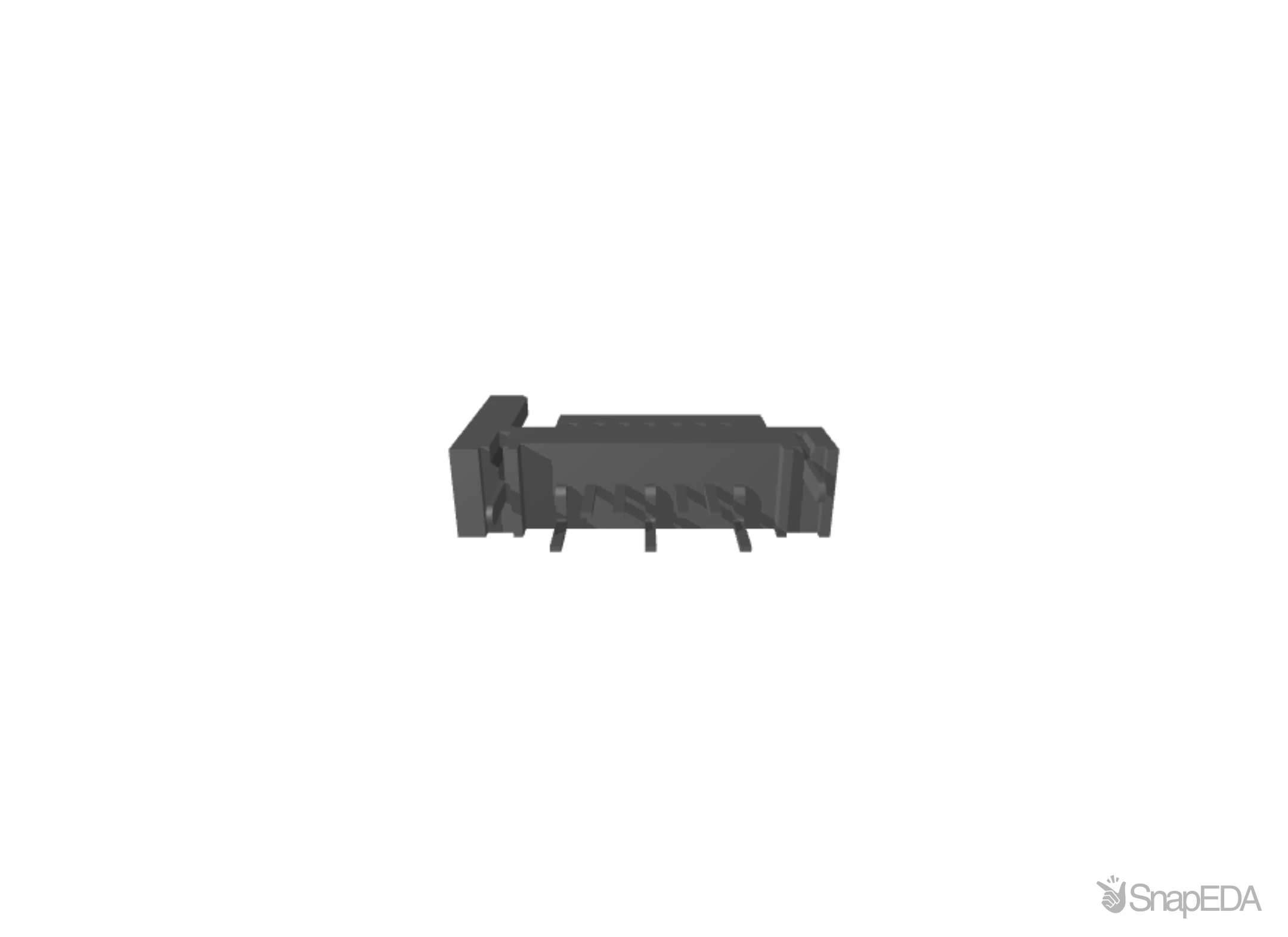

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 67491-1030
| Part Name | 67491-1030 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.5 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 15 V |
| Series | SATA |
| Body Orientation | Straight |
| Termination Method | Solder |
| Number Of Rows | 1 |
| Contact Material | Copper |
| Number Of Contacts | 7 |
| Type | SATA |
| Series Number | 67491 |
Inventory for the 67491-1030 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| RS Americas |
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the 67491-1030
If you experienced any issues with the symbol or footprint, please report it.
