67503-1020

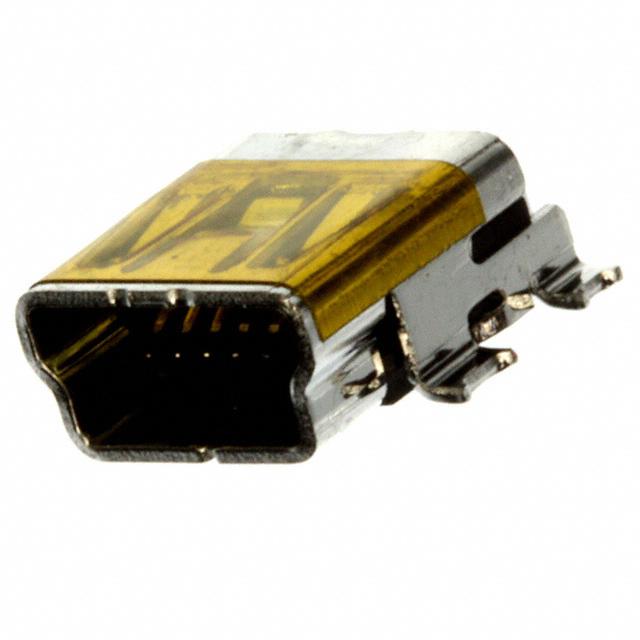

Conn Data USB Mini-B SMT Rt Angle Solder Tabs On-The-Go PCB Pegs LF | Molex Incorporated 67503-1020
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 67503-1020 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 67503-1020
| Part Name | 67503-1020 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.0 (A) |
| Usb Version | 2.0 |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 30.0 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Minimum Operating Temperature | 0.0 (°C) |
| Termination Method | Solder |
| Series Number | 67503 |
| Maximum Operating Temperature | +50 (°C) |
| Usb Type | Mini B |
| Contact Material | Copper Alloy |
Inventory for the 67503-1020 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
7,299
|
|
Visit Site | |
|
★ Featured
|
10,660
|
1,795 x $0.17
|
Visit Site | |
| Avnet America |
94,500
|
|
Visit Site | |
| Chip One Stop |
126,000
|
|
Visit Site | |
| Compona AG |
|
5,000 x $0.33
|
Visit Site | |
| Conrad |
67
|
|
Visit Site | |
| Farnell UK |
113,500
|
|
Visit Site | |
| Heilind Americas |
750
|
|
Visit Site | |
| Newark |
126,000
|
|
Visit Site | |
| Powell Electronics |
83,160
|
|
Visit Site | |
| RS Americas |
490
|
|
Visit Site | |
| RS UK |
1,323
|
|
Visit Site | |
| Rutronik |
7,000
|
|
Visit Site | |
| Sager |
1,500
|
|
Visit Site | |
| TME |
3,287
|
|
Visit Site | |
| TTI Europe |
13,500
|
500 x $0.33
|
Visit Site | |
| Verical |
3,284
|
|
Visit Site | |
| element14 Singapore |
18,157
|
|
Visit Site |
No issues have been reported for the 67503-1020
