67910-0002

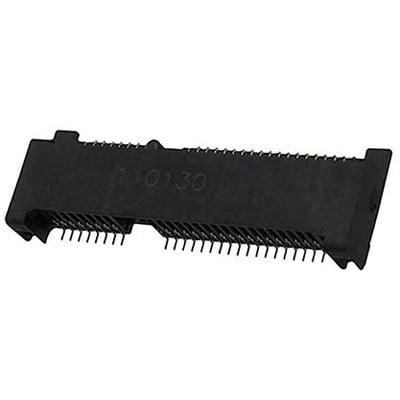

67910 Series, Right Angle Edge Connector SMT, 52 Way, 0.8mm Pitch, 1.1A | Molex Incorporated 67910-0002
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 67910-0002 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 67910-0002
| Part Name | 67910-0002 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.1 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50 V |
| Series | 67910 |
| Body Orientation | Right Angle |
| Pitch | 0.8 (mm) |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 52 |
| Keying Way | Yes |
| Maximum Operating Temperature | +85 (°C) |
Inventory for the 67910-0002 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,905
|
|
Visit Site | |
|
★ Featured
|
4,510
|
490 x $0.61
|
Visit Site | |
| Chip One Stop |
68,895
|
|
Visit Site | |
| Farnell UK |
62,280
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
720
|
360 x $3.33
|
Visit Site | |
| Onlinecomponents |
68,895
|
|
Visit Site | |
| Powell Electronics |
45,471
|
|
Visit Site | |
| RS Americas |
7
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Sager |
720
|
|
Visit Site | |
| TME |
68,760
|
|
Visit Site | |
| TTI Americas |
4,680
|
360 x $0.94
|
Visit Site | |
| Verical |
68,760
|
|
Visit Site | |
| element14 Singapore |
720
|
|
Visit Site |
No issues have been reported for the 67910-0002
If you experienced any issues with the symbol or footprint, please report it.
